Productdetails
Plaats van herkomst: China
Merknaam: LINK-PP
Certificering: UL,ROHS,Reach,ISO
Modelnummer: Arj11b-masaj-MU2
Betaling & het Verschepen Termijnen
Min. bestelaantal: 50/500/1000/25K
Prijs: $0.05-$1.28
Verpakking Details: 50PCS/Tray, 1200pcs/Carton
Levertijd: Voorraad
Betalingscondities: TT, NET30/60/90-Dagen
Levering vermogen: 4200K-PCS/Month
onderdeelnummer: |
Arj11b-masaj-MU2 |
LED: |
W/Wo |
Originele Munafactuer: |
Verbinding-pp |
Ethernet: |
Snel 10/100 |
Familie: |
geïntegreerde magnetics rj45 |
Type: |
rj45 modulaire Jack |
onderdeelnummer: |
Arj11b-masaj-MU2 |
LED: |
W/Wo |
Originele Munafactuer: |
Verbinding-pp |
Ethernet: |
Snel 10/100 |
Familie: |
geïntegreerde magnetics rj45 |
Type: |
rj45 modulaire Jack |

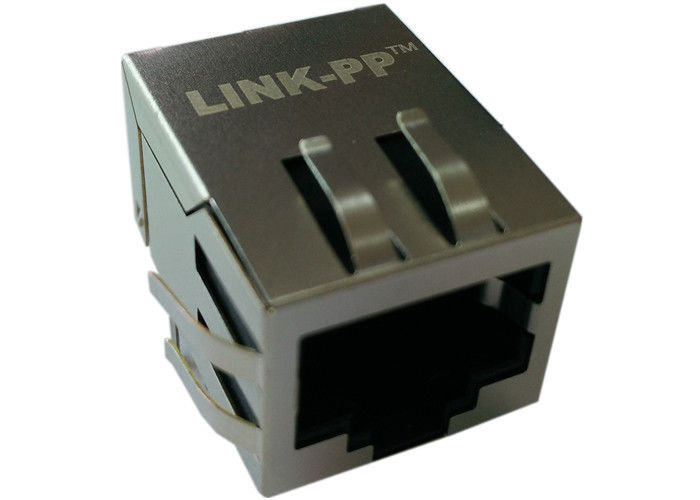

| De Modulaire Hefboom van RJ45 | Arj11b-masaj-MU2 | 10/100 basis-Tx | Enige Haven Rj45 |
ELEKTROspecfications: @25℃
Arj11b-masaj-MU2 Price/PDF/Specifications/Cross.
Verstrekt signaal het conditioneren, EMI afschaffing en signaalisolatie.
1.Turn verhouding; TX=1CT∶1CT RX=1CT∶1CT
2.Inductance OCL: 350uH min
Bias van @100KHz 0.1V 8mA gelijkstroom
3.Insertion verlies:
-1.0dB MAXIMUM @ 1.0-100MHz
4.Return verlies:
-18dB MIN @ 1-30MHz -15dB MIN @ 30-60MHz
-12dB MIN @ 60-80MHz
-10dB MIN @ 80-100MHz
5.Cross bespreking:
-40dB MIN @ 30MHz
-35dB MIN @ 60MHz -30dB MIN @ 100MHz
6.Hipot: 1500Vrms
7.Operating temperatuurwaaier:
0℃ AAN 70℃/-40℃ aan 85℃
• Ontworpen voor de meeste belangrijke fabrikanten van PHY IC zoals Broadcom, Marvell, Microsemi.
• Steunen 10/100 basis-Tapplications
| Van de Hefboom arj11b-masaj-MU2 Geïntegreerde Magnetics Rj45 van RJ45 Modulaire de Schakelaar Snelle Lan | ||
|---|---|---|
| Arj11b-masaj-MU2 | ARJC02-111008B | De Modulaire Hefboom van RJ45 |
| Arj11a-masl-QU2 | Arj11b-masai-MU2 | Arj11c-MCSAT a-B-XMU2 |
| Arj11a-masm-RT2 | ARJC07-111071A | Arj11c-MASAA B-a-XLU2 |
| Arj11a-mdsn-MU2 | ARJC02-111006K | Arj11c-MASAB B-a-XMU2 |
| Arj11b-masai-MU2 | ARJC02-111008B | Arj11c-MASAD a-a-XMU2 |
| Arj11b-masaa-MU2 | ARJC02-111006K | Arj11b-masai-MU2 |
| Arj11b-masai-MU2 | Arj11b-masai-MU2 | Arj11d-masb-B-a-XMU2 |
| Arj11b-masaj-MU2 | Arj11b-masaa-MU2 | Arj11d-mcsc-LU2 |
| Arj11b-masam-MU2 | Arj11b-masai-MU2 | Arj11d-mdsd-a-B-XLT2 |
| Arj11b-masan-LU2 | ARJC02-111008B | Arj11b-masaj-MU2 |
| Arj11b-masaj-MU2 | Arj11b-masaa-MU2 | Arj11d-mdse-a-B-XMU2 |
| Arj11b-mescb-a-B-ELT2 | Arj11b-masaj-MU2 | Arj11d-mase-a-B-XMU2 |
| Arj11b-mascb-LT2 | Arjp11a-masa-B-a-EMU2 | Arj11b-masaa-MU2 |
| Arj11b-mbscb-a-B-ELT2 | Arjp11a-masa-B-a-FMU2 | Arj11d-masg-B-a-XMU2 |
| Arj11b-masaa-MU2 | Arjp11a-mbsb-a-B-EMU2 | Arj11d-masg-a-XMU2 |
| Arj11b-mesbq-a-B-EMU2 | Arj11b-masai-MU2 | Arj11b-masaj-MU2 |
| Arj11b-masbq-MU2 | Arjp11b-masa-B-a-EMU2 | Arj11d-mdsh-a-B-XLU2 |
| Arj11b-mbsbq-a-B-EMU2 | Arjp11b-mbsb-a-B-EMU2 | Arj11d-brij-B-a-XLU2 |
| Arj11b-mfsbq-a-EMU2 | Arjp11c-masa-a-B-EMU2 | Arj11d-mbsj-a-DA-HLT2 |
| Arj11b-masaj-MU2 | Arjp11c-masb-ab-a-FMU2 | Arj11d-mbsk-a-DA-HMU2 |
| Arj11b-masbr-QU2 | Arj11b-masaj-MU2 | Arj11d-mbsl-a-DA-HLU2 |
Van de Hefboom arj11b-masaj-MU2 Geïntegreerde Magnetics Rj45 van RJ45 Modulaire de Schakelaar Snelle Lan
Arj11b-masaj-MU2 de Modulaire Hefboom van RJ45
