Productdetails
Plaats van herkomst: China
Merknaam: LINK-PP
Certificering: UL,ROHS,Reach,ISO
Modelnummer: Xrjh-01d-1-ha1-180
Betaling & het Verschepen Termijnen
Min. bestelaantal: 50/500/1000
Prijs: Supportive
Verpakking Details: 50PCS/Tray, 1200pcs/Carton
Levertijd: Voorraad
Betalingscondities: TT, NET30/60/90-Dagen
Levering vermogen: 4600K.PCS/Month
PN: |
Xrjh-01d-1-ha1-180 |
Made in China: |
Sm-LPJG17329BGNL |
Toepassing: |
1000Base-t |
Ethernet: |
Gigabitlan 10/100/1000 |
LEDs: |
Flexibel |
HiPot: |
1500v |
PN: |
Xrjh-01d-1-ha1-180 |
Made in China: |
Sm-LPJG17329BGNL |
Toepassing: |
1000Base-t |
Ethernet: |
Gigabitlan 10/100/1000 |
LEDs: |
Flexibel |
HiPot: |
1500v |
|
Xrjh-01d-1-ha1-180 |
||||||||||||||||||||||||||||||||
|
Handelaarartikelnummer |
Xrjh-01d-1-ha1-180 |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Gemaakt in China |
Sm-LPJG17329BGNL |
|||||||||||||||||||||||||||||||
|
Fabrikant |
Verbinding-pp China |
|||||||||||||||||||||||||||||||
|
Beschrijving |

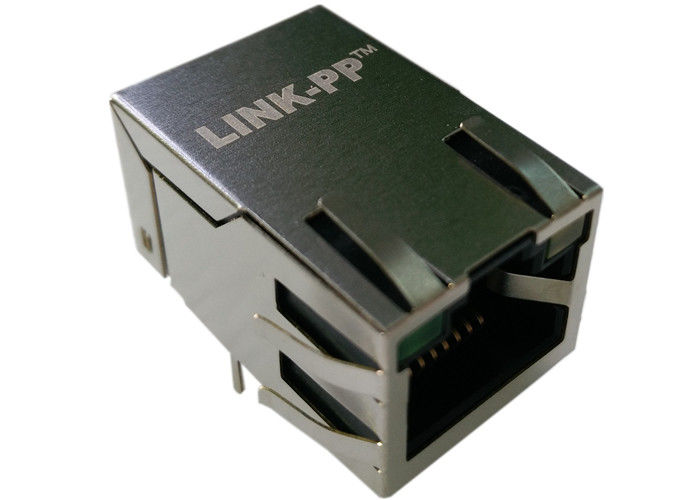

Rj-45 met Magnetics |
|||||||||||||||||||||||||||||||
|
Beschikbare documenten |
PDF/3D/Step/IGS/Price/Cross |
|||||||||||||||||||||||||||||||
|
Beschikbare hoeveelheid |
2.000 PCs of 4 weken |
|||||||||||||||||||||||||||||||
Xrjh-01d-1-ha1-180 Elektrospecificaties @25℃
1.Turns verhouding (±3%):
1CT: 1CT
2.Return verlies:
1-30MHz: - 16dB Min
40MHz: - 13.5dB Min
60-100MHz: - 10dB Min
3.Crosstalk:
1-100MHz: - 30dB Min
4.Insertion verlies:
1-100MHz: -1.2dB maximum
5.Common wijzeverwerping:
1-100MHz: - 30dB Min
6.Inductance:
350uH MIN @100KHz, 0.1V, Bias van 8mA gelijkstroom
7.Hi-pot: 1500VAC/0.5mA
8.Operating temperatuur: 0℃~70℃.
