Productdetails
Plaats van herkomst: China
Merknaam: LINK-PP
Certificering: UL,ROHS,Reach,ISO
Modelnummer: 101110FHAJPM406ZA
Betaling & het Verschepen Termijnen
Min. bestelaantal: 50/500/1000
Prijs: Supportive
Verpakking Details: 50PCS/Tray, 1200pcs/Carton
Levertijd: Voorraad
Betalingscondities: TT, NET30/60/90-Dagen
Levering vermogen: 4600K.PCS/Month
PN: |
101110FHAJPM406ZA |
Made in China: |
Sm-LPJG17311A8NL |
Toepassing: |
1000Base-t |
Ethernet: |
JOL Ethernet |
Poort: |
1,2,4,6,8 flexibel |
HiPot: |
1500v |
PN: |
101110FHAJPM406ZA |
Made in China: |
Sm-LPJG17311A8NL |
Toepassing: |
1000Base-t |
Ethernet: |
JOL Ethernet |
Poort: |
1,2,4,6,8 flexibel |
HiPot: |
1500v |
|
101110FHAJPM406ZA FCI |
||||||||||||||||||||||||||||||||
|
Handelaarartikelnummer |
101110FHAJPM406ZA |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Gemaakt in China |
Sm-LPJG17311A8NL |
|||||||||||||||||||||||||||||||
|
Fabrikant |
Verbinding-pp China |
|||||||||||||||||||||||||||||||
|
Beschrijving |

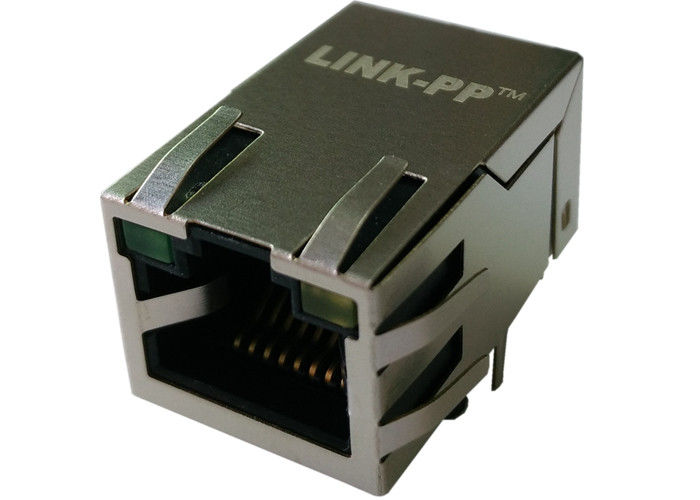

Gigabitrj45 Hefboom W/LED |
|||||||||||||||||||||||||||||||
|
Loodvrije Status/RoHS-Status |
Volgzame loodvrij/RoHS |
|||||||||||||||||||||||||||||||
|
Beschikbare hoeveelheid |
2.000 PCs of 4 weken |
|||||||||||||||||||||||||||||||
101110FHAJPM406ZA elektrospecificaties @25℃
1.Turn verhouding (%%P2%):
1CT∶1
2.Inductance OCL: 350uH min
@100KHz, 0.1V, Bias van 8mA gelijkstroom
3.Insertion verlies:
-1.0dB MAXIMUM @ 1~100MHz
-1.2dB MAXIMUM @ 100~125MHz
4.Return verlies (@100Ω):
-18dB MIN @ 1~30MHz
-16dB MIN @ 30~60MHz
-12dB MIN @ 60~80MHz
-10dB MIN @ 80~100MHz
5.Cross bespreking:
-30dB MIN @ 1~100MHz
6.Common wijzeverwerping:
-30dB MIN @ 1~100MHz
7.Hipot test: 1500Vrms min
8.Operatingt temperatuur: 0 AAN 70℃.
