Productdetails
Plaats van herkomst: China
Merknaam: LINK-PP
Certificering: UL,ROHS,Reach,ISO
Modelnummer: HFJ11-1G02E-L12V3RL
Betaling & het Verschepen Termijnen
Min. bestelaantal: 50/500/1000
Prijs: Supportive
Verpakking Details: 50PCS/Tray, 1200pcs/Carton
Levertijd: Voorraad
Betalingscondities: TT, NET30/60/90-Dagen
Levering vermogen: 4600K.PCS/Month
PN: |
HFJ11-1G02E-L12V3RL |
Halo PN: |
HFJ11-1G02E-L12V3RL |
Gemaakt in China: |

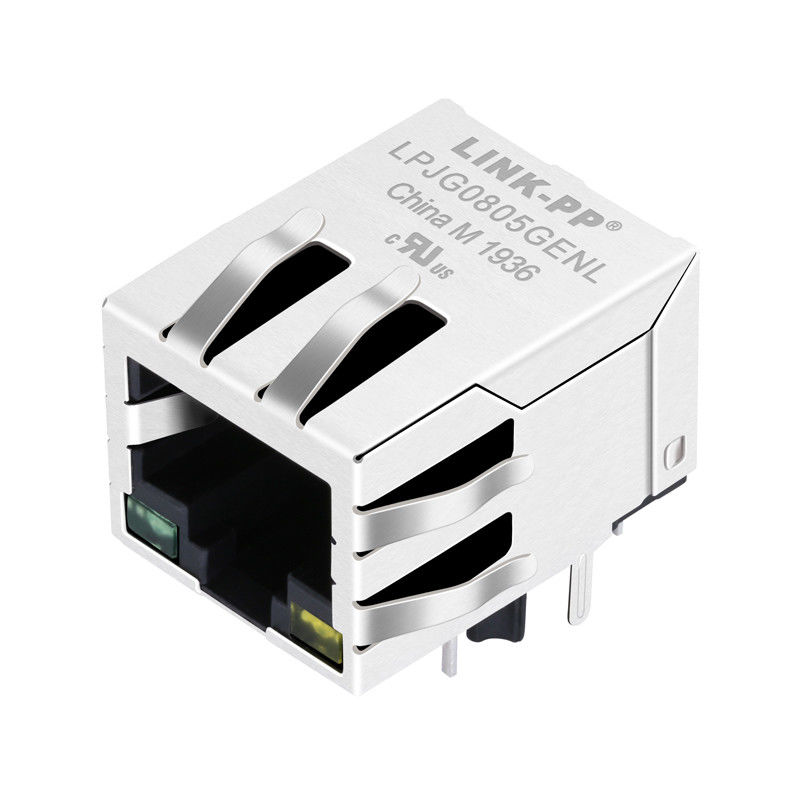

VERBINDING-PP LPJG0805GENL |
Toepassingen: |
100/1000 basis-TX, AutoMDIX |
Familie: |
Magneticsrj45 hefboom |
Richtlijn: |
90° (Juiste) hoek |
LEIDENE Kleur: |
Groen - Geel |
Steun: |
Thru_hole |
PN: |
HFJ11-1G02E-L12V3RL |
Halo PN: |
HFJ11-1G02E-L12V3RL |
Gemaakt in China: |
VERBINDING-PP LPJG0805GENL |
Toepassingen: |
100/1000 basis-TX, AutoMDIX |
Familie: |
Magneticsrj45 hefboom |
Richtlijn: |
90° (Juiste) hoek |
LEIDENE Kleur: |
Groen - Geel |
Steun: |
Thru_hole |
HFJ11-1G02E-L12V3RL = LPJG0805GENL | ||||||||||||||||||||||||||||||||
| Handelaar Part Number | HFJ11-1G02E-L12V3RL halo |
| ||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fabrikant | Halo | |||||||||||||||||||||||||||||||
| Fabrikant PN | HFJ11-1G02E-L12V3RL | |||||||||||||||||||||||||||||||
| Beschrijving | 10/100/1000Mbps Magjack Rj45 | |||||||||||||||||||||||||||||||
| Loodvrije Status/RoHS-Status | Volgzame loodvrij/RoHS | |||||||||||||||||||||||||||||||
| Verbinding-pp de Fabriekskruis van China | LPJG0805GENL gemaakt in China | |||||||||||||||||||||||||||||||
| LPJG0805GENL Beschikbare hoeveelheid | 2.000 PCs | |||||||||||||||||||||||||||||||
Verbinding-pp Gemaakt in China, de Lijst van de Fabrieksmassaproduktie:
| MIC24013-5104T-LF3 | 74990112121 | 13F-64YGD2PLNW2NL | HFJ11-1G02E-L12V3RL |
| 99751813-01 | 74990112121 | XFATM2GA-CLGY1-2MS | XFATM6CB-CLYG1-4MS |
| JX0011D21BNL | J00-0045NL | Mtj-88tx1-fsz-pg-d1lh-M7 | MIC24013-5104T-LF3 |
| RJLD260TC1 | Si-60118-F | HFJ11-E2450E-L12RL | 74990112121 |
| Rjld-260TC1 | J1B1211CFD | XFATM2E-Clxu1-4MS | HFJ11-1G02E-L12V3RL |
| 213a-11xax-r | Rjc-248TC1 | MIC24013-5104T-LF3 | MIC66011-5171T-LF3 |
| JXR0-0015NL | Rjlbc-060TC1 | HFJ11-1G02E-L12V3RL | XFO656P-CLxu1-4MS |
| 13F-64HND2NL | HY911105AE | 5-1840450-7 | 24F-2011EGYD2SNWXNL |
| Hfj11-e2450e-RL | 2-1840450-8 | HFJ11-E2450E-L11RL | 5-6605443-1 |
| Sjtab-40lb02-l | Rjlb-001TC1 | 13F-64GYDPNS2NL | XFAMT6SA-CLGY1-4MS |
| 3070-110204 | J00-0045NL | HFJ11-1G02E-L12V3RL | 24G-66JGYDPLZ2NL |
| 74990112121 | 74990112121 | MIC24013-5104T-LF3 | HFJ11-1G02E-L12V3RL |
HFJ11-1G02E-L12V3RL ELEKTROspecfications: @25℃
ELEKTROspecfications @25℃
1.Turn verhouding (%%P2%):
1CT: 1CT
2.Inductance OCL: 350uH min
@100KHz/0.1V, Bias van 8mA gelijkstroom
3.Insertion verlies:
-1.1dB MAXIMUM @ 0.1-100MHz
4.Return verlies:
-18dB MIN @ 1-40MHz
-14.5dB MIN @ 60MHz
-12dB MIN @ 80MHz
-10dB MIN @ 100MHz
5.Cross bespreking:
-40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
6.Common wijzeverwerping:
-40dB TYPE @ 0.1-100MHz
7.Hipot test: 1500Vrms
8.Operating temperatuur: 0℃ AAN 70℃. /-40℃ AAN +85℃
