Productdetails
Plaats van herkomst: China
Merknaam: LINK-PP
Certificering: UL,ROHS,Reach,ISO
Modelnummer: Lj-640b10-41-F
Betaling & het Verschepen Termijnen
Min. bestelaantal: 50/500/1000
Prijs: Supportive
Verpakking Details: 50PCS/Tray, 1200pcs/Carton
Levertijd: Voorraad
Betalingscondities: TT, NET30/60/90-Dagen
Levering vermogen: 4600K.PCS/Month
onderdeelnummer: |
Lj-640b10-41-F |
Dwarspn: |
LPJG0803GONL |
Type connector: |
Gigabyte Ethernet |
Toepassingen: |
1000Base-t Lan |
Opzettend Type: |
Door Gat |
Richtlijn: |
90~ (Juiste) hoek |
Beëindiging: |
Soldeersel |
Afscherming: |
Beschermd, EMI Vinger |
onderdeelnummer: |
Lj-640b10-41-F |
Dwarspn: |
LPJG0803GONL |
Type connector: |
Gigabyte Ethernet |
Toepassingen: |
1000Base-t Lan |
Opzettend Type: |
Door Gat |
Richtlijn: |
90~ (Juiste) hoek |
Beëindiging: |
Soldeersel |
Afscherming: |
Beschermd, EMI Vinger |

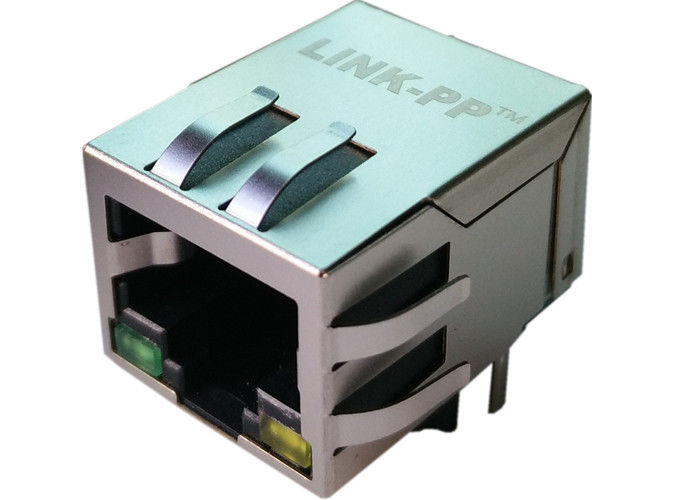

| Lj-640b10-41-F | 10Pins Rj45 | Gigabit Rj45 Magjack | de Schakelaars van 1000Base-t Rj45 |
Elektrospecificaties @25℃
1.Turns verhouding (±2%):
TX=1CT: 1CT RX=1CT: 1CT
2.OCL: 350uH min
@100KHz/0.1V met Bias van 8mA gelijkstroom
3.Return verlies (dB min):
1-30MHz: - 18 30-60MHz: - 16
60-80MHz: - 12 80-100MHz: - 10
4.Crosstalk (dB min):
1-30MHz: - 40 30-60MHz: - 35
60-100MHz: - 30
5.Insertion verlies:
1-100MHz: - MAXIMUM 1.0dB
6.CMR (dB min):
1-50MHz: - 40 50-150MHz: - 30
7.Hipot: 1500Vrms
8.Operating temperatuur: 0℃~+70℃. /-40℃~+85℃.
Dwarslijst:
| De Haven van lj-640b10-41-F rj-45 Jack 1000Base-t Magnetics pcie-G41A2 Gigabit Ethernet | |||
|---|---|---|---|
| Lj-h17s1a-b4-F | Lj-h17s4h-08-F | Lj-h17s1a-08-F | Lj-h17s1a-72-F |
| Lj-h17s4a-04-F | Lj-h17s4h-y4-F | Lj-g40b4e-00-F | Lj-g40a1a-06-F |
| Lj-g40b8e-90 | Lj-h17s4h-band-F | Lj-g40b4e-06-F | Lj-g40a5e-0a-F |
| Lj-h17s1a-02-F | Lj-h17s4h-CY-F | Lj-g40a4h-03-F | Lj-h17s1a-00-F |
| Lj-h17s1a-12-F | Lj-h17s4h-04-F | Lj-h17s4h-05-F | Lj-g40a5h-00-F |
| Lj-g40b4c-04-F | Lj-h17s4h-c4-F | Lj-g40a1a-02-F | Lj-g40a1d-b1-F |
| Lj-h17s1a-04-F | Lj-g40a4i-01-F | Lj-g40a4r-00-F | Lj-g40a5h-01-F |
| Lj-t17s2c-10 | Lj-h17s4h-u4-F | Lj-g40a8e-01-F | Lj-h17s1a-21-F |
| Lj-h17s1a-06-F | Lj-h17s4h-97-F | Lj-h17s1a-07-F | Lj-g40a5e-00-F |
| Lj-h17s4h-9a-F | Lj-h17s4h-y5-F | Lj-g40a4e-00-F | Lj-g40a1d-41-F |
| Lj-t17s2d-10 | Lj-g40a1a-05-F | Lj-g40b4e-0a-F | Lj-g40a1b-06-F |
| Lj-h17s1a-03-F | Lj-g40a1b-04-F | Lj-g40a1a-00-F | Lj-g40a1b-00-F |
| Lj-h17s4e-00-F | Lj-g40a4h-06-F | Lj-g40b4h-y0-F | Lj-g40b8b-00 |
| Lj-h17s4e-02-F | Lj-p17s1z-66-F | Lj-p17s1c-00-F | Lj-g40b8b-90 |
| Lj-h17s4b-00-F | Lj-p17s1z-67-F | Lj-g40b4h-06-F | Lj-g40a1d-21-F |
| Lj-h17s4h-06-F | Lj-g40a4z-y2-F | Lj-g40b4h-00-F | Lj-g40a1d-11-F |
| Lj-h17s4h-a5-F | Lj-g40a1d-45-F | Lj-g40a4h-00-F | Lj-h17s1a-66-F |
| Lj-g40b4e-03-F | Lj-h17s1a-4u-F | Lj-g40a8h-00-F | Lj-g40a1e-00-F |
| Lj-g40a1a-01-F | Lj-g40a1b-09-F | Lj-g40a8e-00-F | Lj-g40a4h-y1-F |
| Lj-h17s4h-02-F | Lj-h17s1a-05-F | Lj-h17s1a-01-F | Lj-g40a4h-01-F |
| Lj-h17s4h-b5-F | Lj-g40a1c-y2-F | Lj-g40a1a-08-F | Lj-g40a5e-01-F |
| Lj-h17s4h-y7-F | Lj-g40a1c-00-F | Lj-h17s1a-98-F | Lj-h17e1c-96-F |
NOTA'S:
1.Designed om toepassing, zoals SOHO (ADSL-modems), LAN-op-Motherboard (LOM), hub en Switches.Especially in Raad te steunen pcie-G41A2.
2.Meets de specificatie van IEEE 802,3
3.Connector materialen:
Het huisvesten: Thermoplastische UL94V-0
Contact/Schild: Koperlegering
Schildplateren: Nikkel
Contactplateren: Gouden 6 micro-inchs van min. Op contactgebied.
4.Wave-de temperatuur van het soldeerseluiteinde: 265℃ maximum
De tijd van de het uiteindetemperatuur van het golfsoldeersel: 5 Maximum seconde
