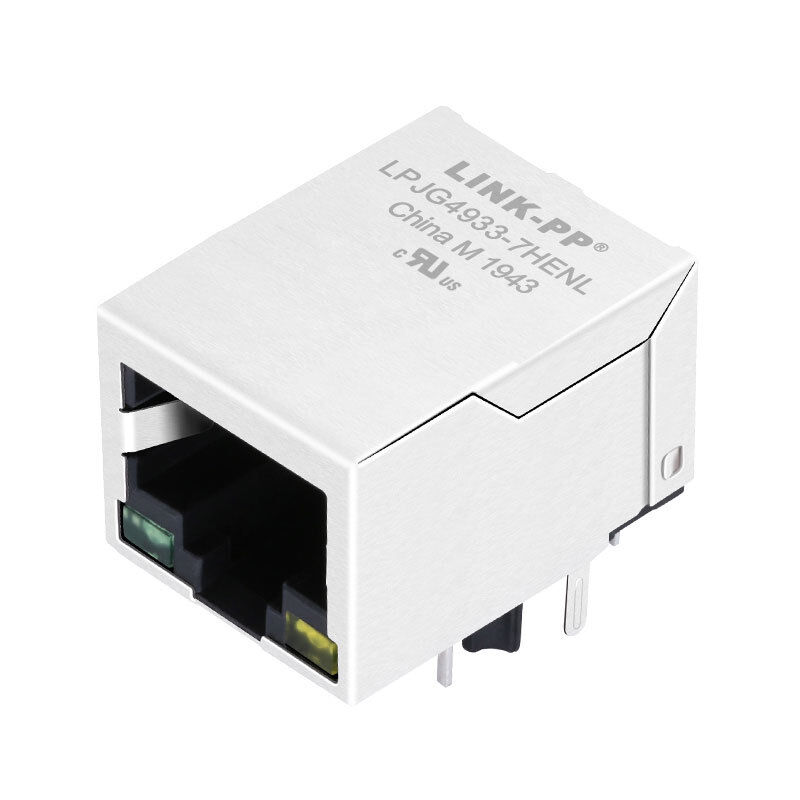

Modelnummer: LPJG4933-7HENL
Betaling & het Verschepen Termijnen
Min. bestelaantal: 50 stuks
Prijs: $0.6-$1.3
Verpakking Details: Tape en haspel (1 doos = 1200 stuks)
Levertijd: In voorraadschip binnen 3 dagen
Betalingscondities: TT,NET30/60/90 Dagen,Western Union
Levering vermogen: 5000K.PCS/Maand
Onderdeelnummer: |
LPJG4933-7HENL |
Positie/contacten: |
10P8C |
LED-kleur: |
Groen/geel |
Aantal poorten: |
1x1 |
Klikken: |
Omlaag |
Gegevenssnelheid: |
1000Base-T |
PoE: |
Niet |
LED-optie: |
Met |
EMl tabbladen: |
zonder |
Montagetype: |
Tht |
Soldeertype: |
Golf |
Bedrijfstemperatuurbereik: |
-40°C tot +85°C |
Onderdeelnummer: |
LPJG4933-7HENL |
Positie/contacten: |
10P8C |
LED-kleur: |
Groen/geel |
Aantal poorten: |
1x1 |
Klikken: |
Omlaag |
Gegevenssnelheid: |
1000Base-T |
PoE: |
Niet |
LED-optie: |
Met |
EMl tabbladen: |
zonder |
Montagetype: |
Tht |
Soldeertype: |
Golf |
Bedrijfstemperatuurbereik: |
-40°C tot +85°C |
| Parameter | Specification |
|---|---|
| Part Number | LPJG4933-7HENL |
| Brand | LINK-PP |
| Connector Type | RJ45 MagJack (Integrated Magnetics) |
| Port Configuration | 1 × 1 (Single Port) |
| Number of Positions / Contacts | 10P8C |
| Ethernet Speed | 10/100/1000 Base-T |
| Application | Ethernet (Non-PoE) |
| Mounting Type | Through Hole |
| Orientation | 90° Right Angle (Side Entry) |
| Latch Type | Tab Down |
| Shielding | Shielded (Without EMI Spring Finger) |
| LED Indicator | Green / Yellow |
| Operating Temperature | -40°C to +85°C |
| Compliance | IEEE 802.3, RoHS |
| UL Certification | E484635 |
| Parameter | Specification |
|---|---|
| Turn Ratio | 1CT:1CT ±5% |
| OCL (Open Circuit Inductance) | ≥ 350 µH @ 100 kHz, 0.1V, 8mA DC Bias |
| Insertion Loss | ≤ -1.2 dB (1-100 MHz) |
| Return Loss | ≥ -16 dB (1-30 MHz) ≥ -12 dB (30-60 MHz) ≥ -10 dB (60-80 MHz) ≥ -8 dB (80-100 MHz) |
| Crosstalk | ≥ -30 dB (1-100 MHz) |
| Common Mode Rejection | ≥ -30 dB (1-100 MHz) |
| Isolation Voltage | 1500 Vrms (PHY to Line) |
| Parameter | Green LED | Yellow LED |
|---|---|---|
| Peak Wavelength | 565 nm | 585 nm |
| Forward Voltage (VF @ 20mA) | 1.8 - 2.6 V | 1.8 - 2.6 V |
| Reverse Current (IR @ 5V) | ≤ 10 µA | ≤ 10 µA |
| Parameter | Specification |
|---|---|
| Package Length | 21.25 mm (0.837 in) |
| Package Width | 15.94 mm (0.628 in) |
| Package Height | 13.30 mm (0.524 in) |
| PCB Mounting | Through Hole |
| PCB Layout | Recommended Top View Available |
| Entry Direction | Side Entry |
| Component | Material |
|---|---|
| Housing | Thermoplastic PBT + 30% Glass Fiber (UL94V-0) |
| Contacts | Phosphor Bronze (C5210R-EH, 0.35 mm) |
| Pins | Brass (C2680R-H, 0.35 mm) |
| Shield | SUS 304 (0.2 mm thickness) |
| Contact Plating | Gold ≥ 15 µin (contact area) |
| Parameter | Specification |
|---|---|
| Soldering Method | Wave Soldering |
| Peak Solder Temperature | 260°C |
| Solder Time | 5 seconds |
| Category | Details |
|---|---|
| Typical Applications | SOHO Devices, ADSL Modems, LAN-on-Motherboard (LOM), Hubs, Switches |
| Target Platform | BeagleBone Green Eco (Gigabit Ethernet Interface) |
| Design Advantage | Integrated magnetics reduces BOM and simplifies PCB layout |
