Productdetails
Plaats van herkomst: Guangdong, China
Merknaam: LINK-PP
Certificering: RoHS compliant

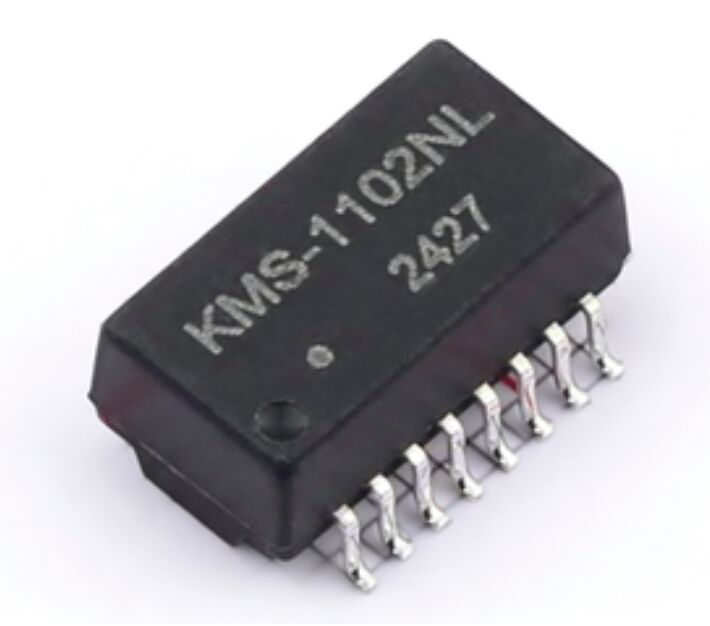

Modelnummer: KMS-1102NL
Betaling & het Verschepen Termijnen
Min. bestelaantal: 50 stuks
Prijs: $0.06-$0.55
Verpakking Details: 50pcs/tray, 1200pcs/carton
Levertijd: in Stock Ship vandaag
Betalingscondities: L/C, D/A, D/P, T/T, Western Union
Levering vermogen: 4600K.PCS/maand
Onderdeelnr: |
KMS-1102NL |
Pakket: |
SMD-16P (12,7 x 7 mm) |
Gegevenssnelheid: |
10/100BASE-TX |
Turn Ratio: |
TX: 1CT:1CT, RX: 1CT:1CT |
Soldeer: |
IR-terugvloeiing |
Naleving: |
IEEE 802.3af / ANSI X3.263 |
Onderdeelnr: |
KMS-1102NL |
Pakket: |
SMD-16P (12,7 x 7 mm) |
Gegevenssnelheid: |
10/100BASE-TX |
Turn Ratio: |
TX: 1CT:1CT, RX: 1CT:1CT |
Soldeer: |
IR-terugvloeiing |
Naleving: |
IEEE 802.3af / ANSI X3.263 |
| Parameter | Specification |
|---|---|
| Package | SMD-16P, 12.7 × 7 mm |
| Part Number | KMS-1102NL |
| Turns Ratio | TX: 1CT:1CT, RX: 1CT:1CT |
| OCL (Primary @ 100kHz, 0.1Vrms, 8mA) | ≥ 350uH |
| Leakage (Primary @ 10kHz, 0.1Vrms) | ≤ 0.5uH |
| Cww (Pri.:Sec.) | ≤ 35pF |
| DCR Primary / Secondary | 0.9Ω / 1.2Ω Max |
| Insertion Loss (1-100MHz) | -1.0 dB Max |
| Return Loss | 1-30MHz: -18 dB, 40-50MHz: -16 dB, 60-100MHz: -35 dB |
| CMRR | 60-100MHz: -30 dB Min |
| Crosstalk | 1-100MHz: -33 dB Min |
| Isolation Voltage | 1500 Vrms Min |
| Operating Temp | 0°C ~ +70°C |
| Storage Temp | -40°C ~ +85°C |
| Operating Humidity | 90% RH |
| Compliance | RoHS, IEEE 802.3af / ANSI X3.263 |
