Productdetails
Plaats van herkomst: Guangdong, China
Merknaam: LINK-PP
Certificering: UL,RoHS,Reach,ISO
Modelnummer: LPJD0718DNL
Betaling & het Verschepen Termijnen
Min. bestelaantal: 400/2000/10k/25k
Prijs: $0.5-$1.1
Verpakking Details: T&R
Levertijd: in Stock Ship vandaag
Betalingscondities: TT, net30/60/90 dagen
Levering vermogen: 5 kk/maand
Onderdeelnummer: |
LPJD0718DNL |
Categorie: |
De Verticale Schakelaar van RJ45 |
Applicatie: |
Niet-PoE Gigabit Ethernet |
hipot: |
1500 VRMS |
Mount type: |
Verticaal (THT) |
bedrijfstemperatuurbereik: |
0°C ~ 70°C |
Posities/contacten: |
10P8C |
Vergrendelingsoriëntatie: |
Omhoog |
Schild EMI-tabs: |
Zonder |
Woningmateriaal: |
Thermoplastisch PBT + 30% glasvezel |
Contactmateriaal: |
Fosforbrons |
UL94V-0: |
Ja |
Pin -materiaal: |
Messing C2680R-H, 0,35 mm |
Schild materiaal: |
Koperlegering Messing |
Contact opnemen: |
Goud 6 µin Min |
Golfsoldeer Temp.: |
250°C ±5°C gedurende 5 sec |
Onderdeelnummer: |
LPJD0718DNL |
Categorie: |
De Verticale Schakelaar van RJ45 |
Applicatie: |
Niet-PoE Gigabit Ethernet |
hipot: |
1500 VRMS |
Mount type: |
Verticaal (THT) |
bedrijfstemperatuurbereik: |
0°C ~ 70°C |
Posities/contacten: |
10P8C |
Vergrendelingsoriëntatie: |
Omhoog |
Schild EMI-tabs: |
Zonder |
Woningmateriaal: |
Thermoplastisch PBT + 30% glasvezel |
Contactmateriaal: |
Fosforbrons |
UL94V-0: |
Ja |
Pin -materiaal: |
Messing C2680R-H, 0,35 mm |
Schild materiaal: |
Koperlegering Messing |
Contact opnemen: |
Goud 6 µin Min |
Golfsoldeer Temp.: |
250°C ±5°C gedurende 5 sec |

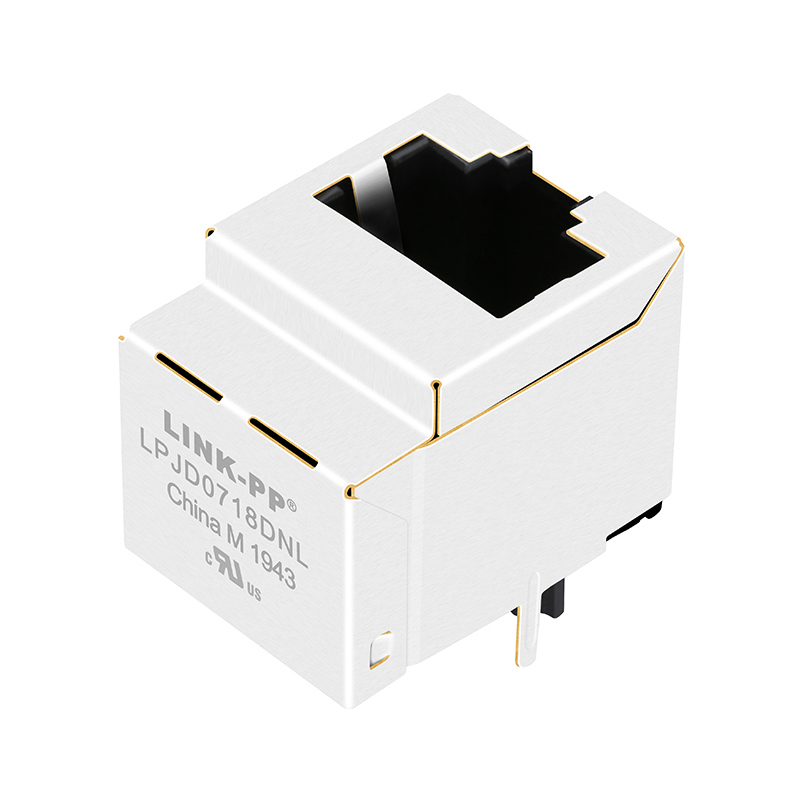

The LPJD0718DNL is a single-port 10/100/1000 Base-T (Gigabit Ethernet) RJ45 magnetic connector designed for vertical PCB mounting. It integrates a high-performance transformer module within the jack housing and supports non-PoE applications.
This model does not include LED indicators, making it ideal for compact or customized Ethernet designs where external status indication is not required.
The LPJD0718DNL provides excellent signal integrity, EMI suppression, and long-term reliability across Ethernet transmission environments, ensuring stable connectivity in high-speed data applications.
| Specification | Value | Condition |
|---|---|---|
| Turn Ratio (±2%) | 1CT:1CT | Primary: Secondary (TX/RX) |
| OCL Inductance (Min) | 350 µH | @100kHz, 0.1V, 8mA DC Bias |
| Insertion Loss (Max) | -1.0 dB | 1 - 100 MHz |
| Return Loss (Min) | -18 dB | 1 - 40 MHz |
| Return Loss (Min) | -14 dB | 60 MHz |
| Return Loss (Min) | -12 dB | 80 MHz |
| Return Loss (Min) | -10 dB | 100 MHz |
| Crosstalk (Min) | -30 dB | 1 - 100 MHz |
| CMRR (Min) | -30 dB | 1 - 100 MHz |
| HiPot Test | 1500 Vrms | -- |
| Operating Temperature Range | 0°C ~ 70°C | -- |
| Dimension | Inches | Millimeters (mm) |
|---|---|---|
| Height | 0.654" | 16.60 mm |
| Length | 0.850" | 21.59 mm |
| Width | 0.630" | 16.00 mm |
The LPJD0718DNL Vertical RJ45 Gigabit MagJack is widely used in networking and embedded communication equipment that requires high-speed Ethernet performance without PoE.
