Productdetails
Plaats van herkomst: Guangdong, China
Merknaam: LINK-PP
Certificering: UL,ROHS,Reach,ISO
Modelnummer: LPJD0713DNL
Document: LPJD0713DNL.pdf
Betaling & het Verschepen Termijnen
Min. bestelaantal: 50/500/1000/25K
Prijs: $0.09-$1.85
Verpakking Details: 54 stuks in 1 lade, 22 stuks in 1 doos, dat is 37*30*30 cm, 10KGS (1080 stuks) van elke doos
Levertijd: 1 dag, vandaag vertrekken.
Betalingscondities: TT, net30/60/90 dagen
Levering vermogen: 3000000/maand
Serie: |
Verticale RJ45-connector |
Onderdeelnummer: |
LPJD0713DNL |
Ethernet: |
10/100/1000Base-T |
LED: |
Zonder geleid |
Bedrijfstemperatuur: |
0 ° C tot +70 ° C |
Oriëntatie: |
Top-instap |
Hoogte: |
16.6mm |
Lengte: |
21.59mm |
Breedte: |
16.00mm |
Bestanden: |
Datasheet, PCB-footprint en 3D STEP beschikbaar |
Serie: |
Verticale RJ45-connector |
Onderdeelnummer: |
LPJD0713DNL |
Ethernet: |
10/100/1000Base-T |
LED: |
Zonder geleid |
Bedrijfstemperatuur: |
0 ° C tot +70 ° C |
Oriëntatie: |
Top-instap |
Hoogte: |
16.6mm |
Lengte: |
21.59mm |
Breedte: |
16.00mm |
Bestanden: |
Datasheet, PCB-footprint en 3D STEP beschikbaar |

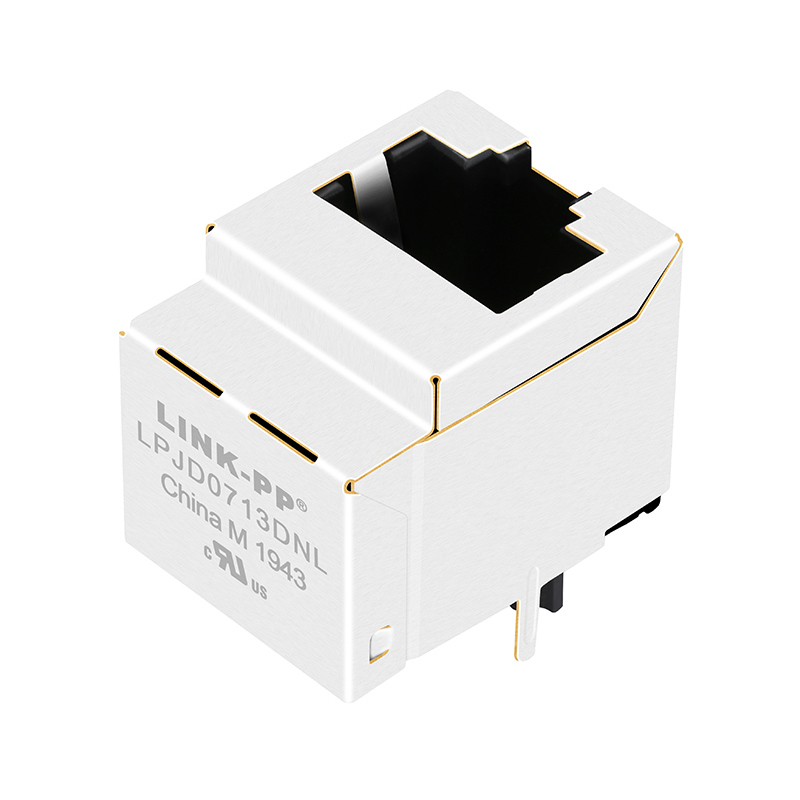

The LINK-PP LPJD0713DNL is a 1 ×1 vertical (top-entry) RJ45 connector with integrated magnetics, designed for 10/100/1000BASE-T Ethernet applications. Featuring a built-in transformer, excellent EMI performance, and no-LED design, it delivers cost-effective, high-reliability Ethernet connectivity for compact embedded and industrial systems.
Ideal for applications where board space, simplified design, and long-term reliability are priorities.
| Parameter | Description |
|---|---|
| Product Model | LPJD0713DNL |
| Connector Type | RJ45 w/ Integrated Magnetics |
| Port Configuration | 1×1 Single Port |
| Speed | 10/100/1000BASE-T |
| Transformer Ratio | 1CT:1CT |
| OCL | ≥ 350 µH @ 100kHz, 0.1V, 8mA |
| Isolation Voltage | 1500 Vrms |
| Mounting Style | Vertical / Top Entry |
| Termination | Through-Hole |
| Shielding | Metal shield |
| Contact Plating Options | 6µ" / 15µ" / 30µ" Gold |
| Operating Temperature | 0°C to +70°C |
| Housing Material | High-temperature thermoplastic |
| Compliance | RoHS, REACH, UL, ISO9001/14001 |
This Vertical RJ45 connector supports PHYs from:
Offers plug-and-play compatibility with major industry Ethernet controllers.
