Productdetails
Plaats van herkomst: GUANGDONG, CHINA
Merknaam: LINK-PP
Certificering: UL,ROHS,Reach,ISO
Modelnummer: LPJE101-0DNLTR-SM
Document: LPJE101-0DNLTR-SM.pdf
Betaling & het Verschepen Termijnen
Min. bestelaantal: 10/100/25K
Prijs: $0.06-$1.2
Verpakking Details: Tape-en-Reel
Levertijd: In voorraadschip binnen 3 dagen
Betalingscondities: L/C, D/A, D/P, Western Union
Levering vermogen: 6500K-PCS/maand
producttype: |
1×1 afgeschermde RJ45-connector |
Bedrijfstemperatuur: |
−40°C aan +85°C |
Compatibele merken: |
TE |
Aantal poorten: |
1x1 |
Klikken: |
Omhoog |
Prestatiecategorie: |
Cat 5e |
Aantal posities/contacten: |
8p8c |
Montagetype: |
THR |
LED-optie: |
Zonder |
EMl tabbladen: |
Zonder |
Metalen schild: |
Afgeschermd |
Oriëntatie: |
Rechte hoek (Zijingang) |
producttype: |
1×1 afgeschermde RJ45-connector |
Bedrijfstemperatuur: |
−40°C aan +85°C |
Compatibele merken: |
TE |
Aantal poorten: |
1x1 |
Klikken: |
Omhoog |
Prestatiecategorie: |
Cat 5e |
Aantal posities/contacten: |
8p8c |
Montagetype: |
THR |
LED-optie: |
Zonder |
EMl tabbladen: |
Zonder |
Metalen schild: |
Afgeschermd |
Oriëntatie: |
Rechte hoek (Zijingang) |

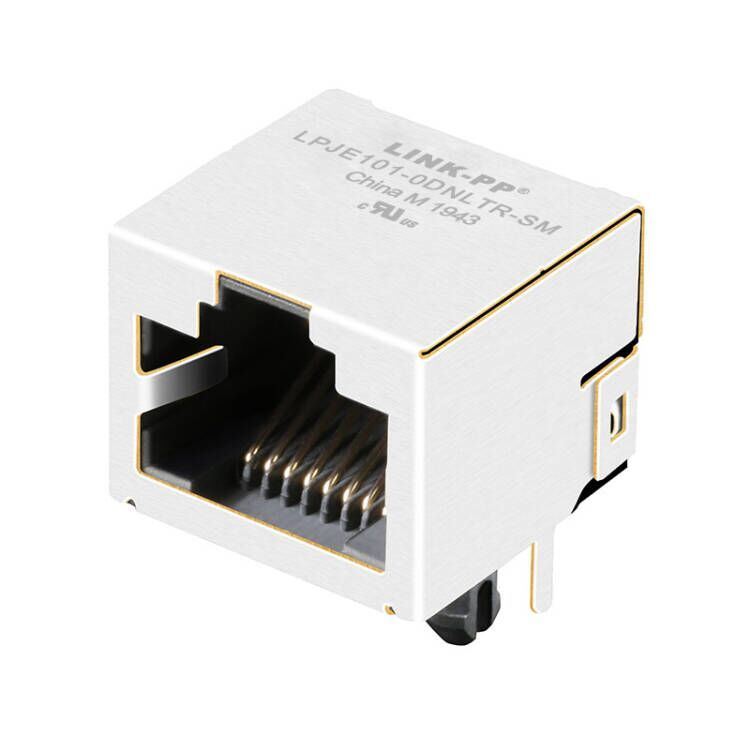

The LINK-PP LPJE101-0DNLTR-SM is a 1×1 shielded industrial-grade RJ45 connector designed for rugged Ethernet applications that require long-term durability, stable electrical performance, and compatibility with automated manufacturing.
Featuring Through-Hole Reflow (THR) technology, it combines SMT process efficiency with superior mechanical retention—ideal for harsh-environment networking devices.
The LPJE101-0DNLTR-SM THR RJ45 connector offers high mechanical strength, reliable signal integrity, and reflow soldering capability for automated SMT production lines. Perfect for industrial Ethernet, automation, robotics, embedded networking, and rugged communication devices.
|
Parameter |
Specification |
|---|---|
| Product Type | 1×1 Shielded RJ45 Connector (THR) |
| Positions / Contacts | 8P8C (RJ45) |
| Performance | Cat5e-class mechanical structure |
| Voltage / Current | 125V AC / 1.5A |
| Contact Resistance | ≤20 mΩ |
| Insulation Resistance | ≥500 MΩ @ 500V DC |
| Dielectric Strength | 1000V AC 1min |
| Contact Material | Phosphor Bronze, Gold-Flash plating |
| Shielding | Nickel-plated copper alloy |
| Operating Temperature | −40°C to +85°C |
| Soldering Process | IR reflow 250°C / 5s |
| Durability | ≥750 plug cycles |
| Mounting | Through-Hole Reflow (THR) |
|
Packaging |
Details |
|---|---|
| Tape & Reel | 200 pcs / reel |
| Carton | 2000 pcs / carton |
| Carton Size | 395 × 395 × 385 mm |
| Weight | ~13 kg/carton |
THR RJ45 connectors combine the mechanical robustness of through-hole pins with the high-speed automated reflow soldering process used for SMT manufacturing.
This makes the LPJE101-0DNLTR-SM an excellent choice for rugged embedded networking hardware.
