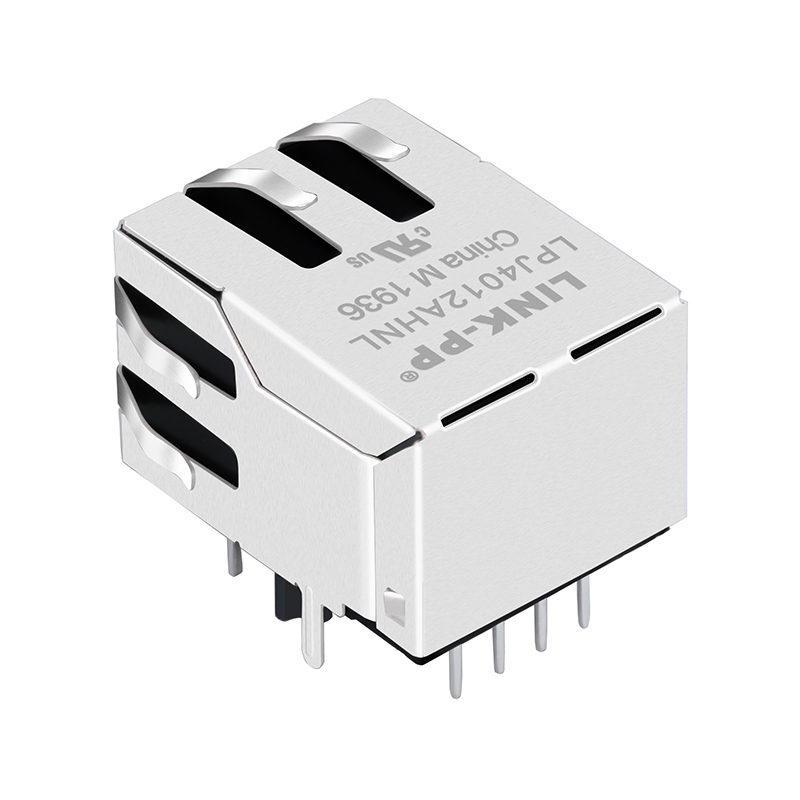

LPJ4012AHNL 10/100BASE-T Single Port RJ45 Connector with LEDs

Name: LPJ4012AHNL 10/100BASE-T Single Port RJ45 Connector with LEDs
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: LPJ4012AHNL
Price: 0.70 USD
Availability: InStock

Productdetails

Plaats van herkomst: Guangdong, China

Merknaam: LINK-PP

Certificering: UL,RoHS,REACH,ISO

Modelnummer: LPJ4012AHNL

Document: LPJ4012AHNL.pdf

Betaling & het Verschepen Termijnen

Min. bestelaantal: 50/1200 stuks

Prijs: $0.7-$1.5

Verpakking Details: dienblad

Levertijd: 5-8 werkdagen

Betalingscondities: L/C, D/A, D/P, T/T, Western Union

Levering vermogen: 5 kk/maand

Krijg Beste Prijs

Productdetails

Productomschrijving

Markeren:
                                                                                                                                                                                                                                                                                                                                    LPJ4012AHNL, 10/100BASE-T Magjack, LINK-PP RJ45


Onderdeelnummer:	LPJ4012AHNL	Geslacht:	Vrouwelijke Magjack
Compatibele merken:	Puls	Aantal poorten:	1x1
Klikken:	Omlaag	Gegevenssnelheid:	100Base-T
Poe:	Niet	LED-optie:	Met
EMl tabbladen:	Met	Montagetype:	Tht
Soldeertype:	Golf	Bedrijfstemperatuurbereik:	-40 ° C tot +85 ° C

Onderdeelnummer:	LPJ4012AHNL
Geslacht:	Vrouwelijke Magjack
Compatibele merken:	Puls
Aantal poorten:	1x1
Klikken:	Omlaag
Gegevenssnelheid:	100Base-T
Poe:	Niet
LED-optie:	Met
EMl tabbladen:	Met
Montagetype:	Tht
Soldeertype:	Golf
Bedrijfstemperatuurbereik:	-40 ° C tot +85 ° C

LPJ4012AHNL 10/100BASE-T Single Port RJ45 Connector with LEDs

Overview of 100Base-T RJ45 Connector

The LPJ4012AHNL from LINK-PP is a 10/100BASE-T Single Port RJ45 Female Connector featuring integrated LEDs and EMI shielding. It is designed for Fast Ethernet (IEEE 802.3) applications such as network switches, routers, media converters, and embedded Ethernet interfaces.

Key Features & Benefits

Integrated Magnetics (MagJack) - Combines isolation transformer and common-mode choke into a single connector to simplify PCB layout.
Tab-Down Structure - Ideal for bottom-mount or limited-space board designs.
Dual LEDs (Green/Yellow) - Clear visual feedback for link and activity status.
Enhanced EMI Shielding - Metal shell and ground tabs minimize electromagnetic interference.
Wide Temperature Range (-40 °C ~ +85 °C) - Suitable for industrial and outdoor network applications.
Through-Hole Construction - Provides mechanical stability and strong solder retention.
RoHS & REACH Compliant - Environmentally friendly and globally accepted.

LPJ4012AHNL 10/100BASE-T Magjack Specifications

Feature	Specification	Details
Ethernet Speed	10/100 Base-T	Supports IEEE 802.3 Fast Ethernet
Number of Ports	1×1	Single Port RJ45 Connectors
Pin Count	8P8C	Standard RJ45 modular interface
Mounting Type	THT (Through-Hole)	Wave-soldered through PCB holes
Orientation	Tab Down	Latch positioned downward for PCB edge mounting
LED Indicators	Green / Yellow	Display link and activity status
Shielding	EMI Shield with Ground Tabs	Provides better noise immunity
Operating Temperature	-40 °C to +85 °C	Industrial temperature range
Dimensions	21.25 mm L × 15.93 mm W × 13.30 mm H	Compact design
Compliance	IEEE 802.3, UL, RoHS, REACH, ISO9001/14001	Fully certified for global markets
Packaging	50 pcs/tray, 1200 pcs/carton	Standard packaging

LPJ4012AHNL Drawing

LPJ4012AHNL.pdf

Electrical Specifications (@25 °C)

1. Turn Ratio (±2%) TX = 1CT : 1CT RX = 1CT : 1CT

2. Inductance (OCL) ≥ 350 µH min @ 100 kHz, 0.1 V, 8 mA DC Bias

3. Insertion Loss ≤ -1.0 dB (max) @ 1-100 MHz

4. Return Loss -18 dB (min) @ 1-30 MHz
-15 dB (min) @ 30-60 MHz
-12 dB (min) @ 60-80 MHz
-10 dB (min) @ 80-100 MHz

5. Crosstalk -40 dB (min) @ 30 MHz
-35 dB (min) @ 60 MHz
-30 dB (min) @ 100 MHz

6. Common Mode Rejection (CMR) -40 dB (min) @ 30 MHz
-35 dB (min) @ 60 MHz
-30 dB (min) @ 100 MHz

7. Hi-Pot 1500 Vrms

8. Operating Temperature Range -40 °C to +85 °C
