Productdetails
Plaats van herkomst: Guangdong, China
Merknaam: LINK-PP
Certificering: ISO 9001,ISO 14001,UL,SGS,REACH168
Modelnummer: 4-2170808-1
Betaling & het Verschepen Termijnen
Min. bestelaantal: 10/100/25K
Prijs: $3-$12
Verpakking Details: 20/Band
Levertijd: In voorraadschip binnen 3 dagen
Betalingscondities: TT, net30/60/90 dagen
Levering vermogen: 350K/maand
Onderdeelnummer: |
TE 4-2170808-1 |
Type thermisch accessoire inbegrepen: |
Koellichaam |
Kooi -type: |
Ganged |
Vormfactor: |
QSFP28/56 |
Aantal poorten: |
1 x 2 |
Gegevenssnelheid (max): |
28 GB/s |
Onderdeelnummer: |
TE 4-2170808-1 |
Type thermisch accessoire inbegrepen: |
Koellichaam |
Kooi -type: |
Ganged |
Vormfactor: |
QSFP28/56 |
Aantal poorten: |
1 x 2 |
Gegevenssnelheid (max): |
28 GB/s |
| Parameter | Specification |
|---|---|

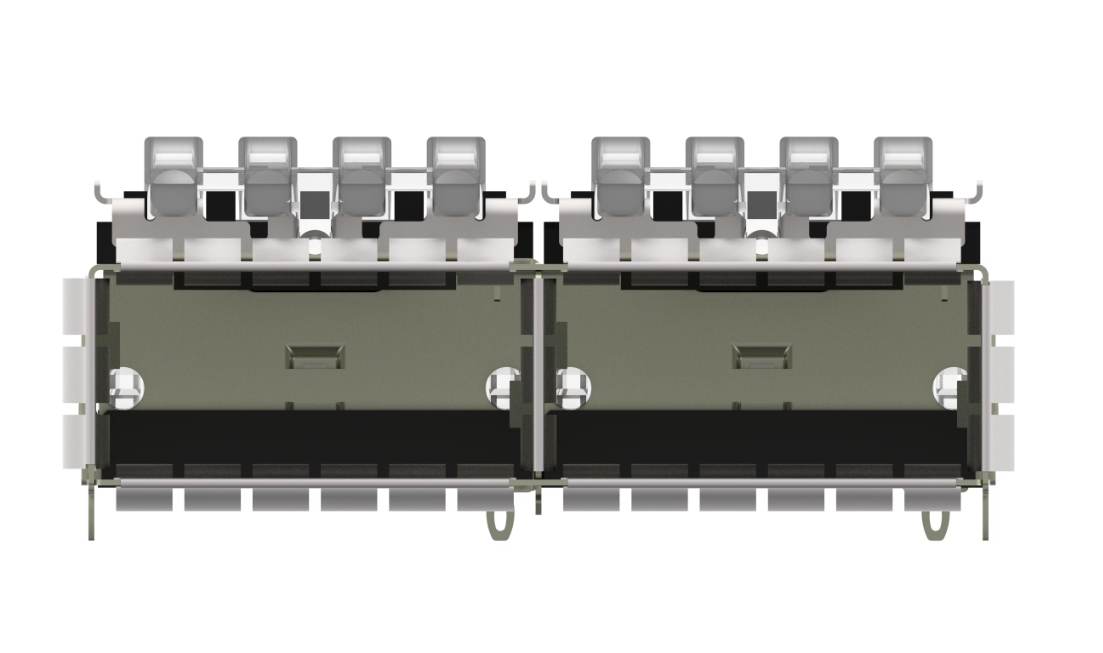

| Product Type | Cage Assembly (Pluggable I/O) |
| Ports / Configuration | 2 ports (1 × 2 matrix) |
| Max Data Rate | 28 Gb/s |
| Temperature Range | –40 °C to +85 °C (–40 °F to +185 °F) |
| Sealable | No |
| Contact Termination | Through-hole, press-fit, tail length 2.05 mm |
| PCB Thickness (recommended) | 1.57 mm (0.062 in) |
| Cage Material | Nickel Silver |
| Heat Sink | Pin type, anodized black finish |
| Heat Sink Height | 4.2 mm |
| EMI Features | Internal & external EMI springs |
| Flammability Rating | UL 94V-0 |
| Packaging | Box & Tray |
| Included Accessories | Lightpipe |
This cage assembly is intended for high-speed data transmission applications using QSFP28 / QSFP56 optical or copper modules. It is suitable for:
