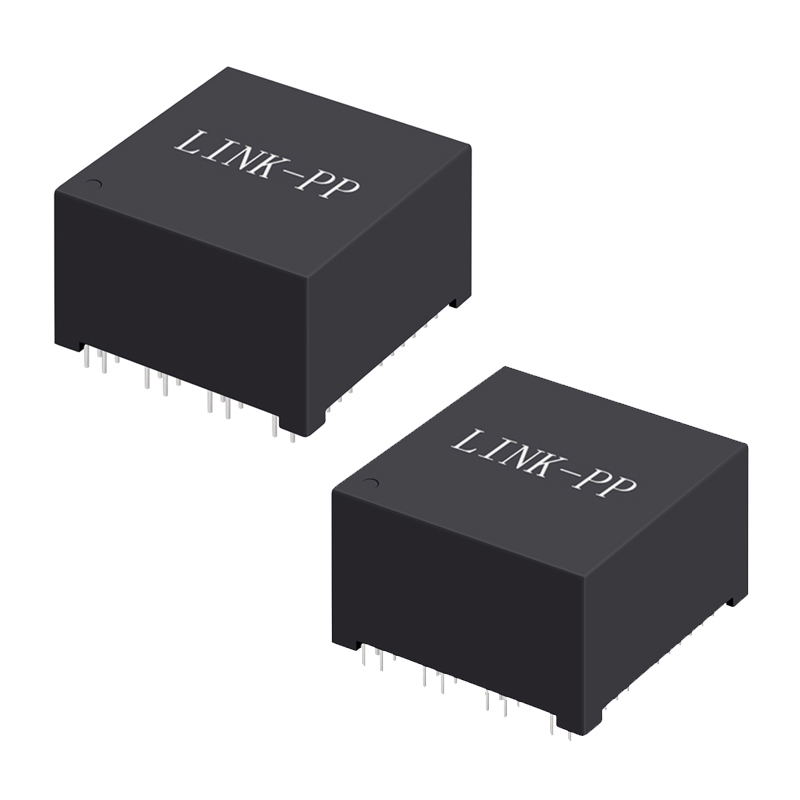

HXB6606NL 1000mA PoE++ 1G Magnetic Modules THT Package In 96 Pin

HXB6606NL PoE LAN Magnetics Key Features:

1. High-density PoE LAN transformers.
2. Meets IEEE 802.3 standards for 10/100Base-Tx and 1000Base-T (1G) Ethernet.
3. Supports 4-pair PoE++ 90W power, with a current rating of 1000mA per pair.
4. THT (Through-Hole Technology), 96-pin quad-port package.
5. 1500Vrms minimum isolation between the primary and secondary coils, ensuring signal integrity.
6. 280µH minimum inductance of (measured at 100KHz/0.1V with a 15mAdc bias).
7. Can be hand or wave soldered at a maximum temperature of 260°C for 5 seconds.
8. Fully RoHS compliant.
9. Compatible with all major PHYs (Physical Layer devices).
10. Suitable for industrial applications with a wide operating temperature range of -40°C to +85°C.
11. Designed for use in industrial networks, electronics, and other rugged environment applications.

1GBase-T PoE Transformer Electrical Specifications @25℃:

Datasheet of HXB6606NL Magnetics Modules:

FAQ:

1. What is a PoE LAN Transformer?

A PoE (Power over Ethernet) LAN Transformer is a specialized network component integrated into Ethernet devices. Its primary function is to enable the simultaneous transmission of both data signals and electrical power over a single Ethernet cable, thereby simplifying cabling and reducing installation costs.

2. What are the main functions of a PoE LAN Transformer?

The key functions include:

• Data Transmission: Ensures the integrity of Ethernet data signals and supports high-speed communication.
• Power Delivery: Provides electrical power to devices (such as IP cameras, VoIP phones, and wireless access points) over the same Ethernet cable.
• Electrical Isolation: Offers galvanic isolation to protect equipment from surges and ground loop currents, enhancing system safety.
• Signal Integrity: Improves signal quality by reducing noise and interference, ensuring stable and reliable communication.

3. Why is a PoE LAN Transformer necessary?

In traditional network cabling, data and power require separate cables. A PoE LAN Transformer allows both data and power to be transmitted through a single Ethernet cable, greatly simplifying installation, lowering costs, and reducing complexity. This is particularly valuable in scenarios where power outlets are difficult or expensive to install.

4. Which Ethernet standards do PoE LAN Transformers support?

PoE LAN Transformers typically comply with the following standards:

• IEEE 802.3af (PoE)
• IEEE 802.3at (PoE+)
• IEEE 802.3bt (PoE++)

These standards define the power levels and delivery methods over Ethernet cables, ensuring compatibility with a wide range of powered devices.

5. What are the common applications of PoE LAN Transformers?

PoE LAN Transformers are widely used in applications requiring both data and power delivery over Ethernet, such as:

• IP Cameras: Simplify Cabling in Surveillance Systems.
• VoIP Phones: Enable Flexible Office Telephony Deployment.
• Wireless Access Points (APs): Allow ceiling- or wall-mounted installations without separate power supplies.
• Smart Lighting: Provide both connectivity and power to intelligent lighting systems.
• Point-of-Sale (POS) Terminals: Reduce wiring complexity in retail environments.
• Access Control Systems: Deliver power and data to card readers and controllers.
