Productdetails
Plaats van herkomst: Guangdong, China
Merknaam: LINK-PP
Certificering: UL,ROHS,Reach,ISO

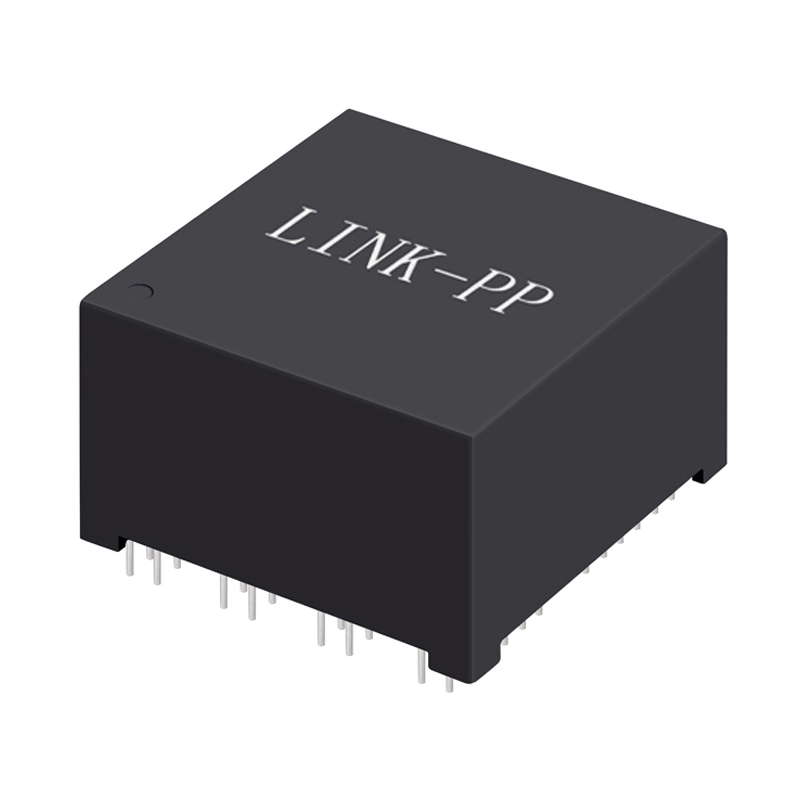

Modelnummer: HB5G601NL
Betaling & het Verschepen Termijnen
Min. bestelaantal: 50/500/1000/25K
Prijs: $0.09-$1.85
Verpakking Details: 50pcs/tray, 1200pcs/carton
Levertijd: In voorraadschip binnen 3 dagen
Betalingscondities: TT, net30/60/90 dagen
Levering vermogen: 250000-320000/maand
Onderdeelnummer: |
HB5G601NL |
Type transformator: |
Macht over Ethernet-Transformator |
Montagetype: |
Door gat |
Aantal poorten: |
Quad |
gegevenssnelheid: |
5GBase-T |
Specificatie: |
IEEE 802.3bt |
Poe: |
4PPoE 60W |
Machanicals: |
29.00x33.50x16.80mm |
Isolatiespanning: |
1500 Vac |
Inductie: |
180 μH |
Onderdeelnummer: |
HB5G601NL |
Type transformator: |
Macht over Ethernet-Transformator |
Montagetype: |
Door gat |
Aantal poorten: |
Quad |
gegevenssnelheid: |
5GBase-T |
Specificatie: |
IEEE 802.3bt |
Poe: |
4PPoE 60W |
Machanicals: |
29.00x33.50x16.80mm |
Isolatiespanning: |
1500 Vac |
Inductie: |
180 μH |
|
Parameter |
Value / Range |
Notes |
|---|---|---|
|
Product Category |
Ethernet Magnetics |
Power over Ethernet LAN Transformer |
|
Mounting Style |
Through-Hole |
|
|
Number of Ports |
Quad (4-Port) |
|
|
Data Rate |
5GBASE-T |
Also supports 1/2.5GBASE-T |
|
Application |
LAN, Ethernet (Non-PoE, PoE, PoE+) |
|
|
PoE Standard |
4-Pair PoE+ (60W) |
IEEE 802.3bt |
|
PoE Current |
600 mA |
Per Pair |
|
Turns Ratio |
1CT:1CT |
|
|
Media Side Inductance |
180 µH (min) |
@100KHz, 0.1V |
|
Insertion Loss |
-1.0 dB (max) |
1-100 MHz |
|
|
-2.0 dB (max) |
100-250 MHz |
|
Return Loss |
-16 dB (min) |
1-40 MHz |
|
|
-(16-10 log10(f/40)) dB (min) |
40 < f ≤ 250 MHz |
|
Isolation Voltage |
1500 Vrms / 1500 VAC |
Primary to Secondary |
|
Operating Temperature |
0°C to +70°C |
|
|
RoHS Compliant |
Yes |
