Productdetails
Plaats van herkomst: China
Merknaam: LINK-PP
Certificering: ISO 9001,ISO 14001,UL,SGS,REACH168
Modelnummer: 1-1840661-7
Betaling & het Verschepen Termijnen
Min. bestelaantal: 50/500/1000/25K
Prijs: $0.09-$1.85
Verpakking Details: 50 stuks/1 tray, 20 trays/1 doos, 32*30*31cm, 8 KG (1000 stuks)/1 doos
Levertijd: Voorraad
Betalingscondities: TT, NET30/60/90-Dagen
Levering vermogen: 4200K-PCS/Month
Artikel 2: |
1-1840661-7 RJ45 Connector met Transformator |
Aantal havens: |
Gestapelde 2X4 |
EMI LUSJES: |
Ja |
LED-indicator: |
Links GAAN, Rechts GAAN |
Versnelling: |
1000Base-T |
Bedrijfstemperatuur: |
0 ~ + 70 °C |
Artikel 2: |
1-1840661-7 RJ45 Connector met Transformator |
Aantal havens: |
Gestapelde 2X4 |
EMI LUSJES: |
Ja |
LED-indicator: |
Links GAAN, Rechts GAAN |
Versnelling: |
1000Base-T |
Bedrijfstemperatuur: |
0 ~ + 70 °C |
|

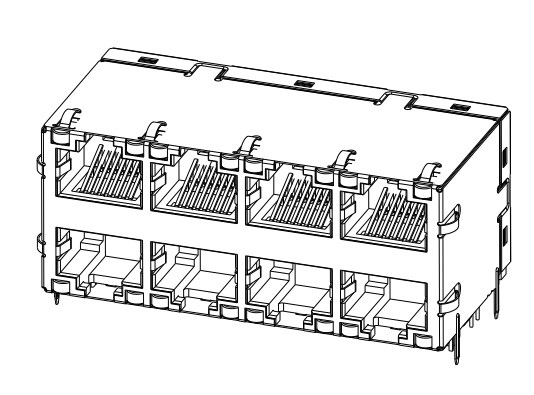

RJ45 Connector with 1000 Base-T Integrated Magnetics |
|
|
Part Number |
1-1840661-7 |
|
Length |
28.12mm |
| Width | 59.07mm |
| Height | 25.50mm |
| Connector Type | RJ45 Multi-Port Jack |
|
LED Option |
GREEN ORANGE / GREEN ORANGE |
|
Latch |
TAB UP AND DOWN |
|
Number of Ports |
2X4 |
|
Transform |
INTEGRATED MAGNETICS |
|
PCB Mount Angle |
SIDE ENTRY |
|
UL Certification |
YES |
|
RoHS Compliant |
YES |
| Housing Material | Thermoplastic |
| Thermoplastic | UL94V-0 |
|
Shield EMI Tabs |
WITH |
|
Application |
10/100/1000 BASE-T |
|
Temperature Range |
0 TO 70℃ |
| Transmission mode | Full duplex |
| IMPEDANCE | 100 OHMS |
|
Turns Ratio |
(CHIP: CABLE)1:1 ALL FOUR PAIRS |
| INDUCTANCE (OCL) | 350uH MIN @100kHz, 0.1 VRMS, 8mADC BIAS FROM 0°C TO 70°C |
| Isolation voltage | 2250VDC(MAX) |
The MagJack 1-1840661-7 is a high-performance multi-port Integrated Connector Module designed for Gigabit Ethernet applications. It integrates four RJ-45 connectors with transformers and LED indicators in a compact form factor, providing a complete physical layer interface solution. The product features excellent electrical performance, reliable design, and comprehensive LED status indication, making it suitable for various network devices and communication equipment requiring Gigabit Ethernet Magjacks.
