Productdetails
Plaats van herkomst: HuiZhou, China
Merknaam: LINK-PP
Certificering: RoHS Compliant
Modelnummer: 1-1840578-9
Betaling & het Verschepen Termijnen
Min. bestelaantal: 1pcs, gratis monsters.
Prijs: $1.1-$4.3
Verpakking Details: Tape & Reel (TR)
Levertijd: 3-5 dagen
Betalingscondities: TT, NET30/60/90 dagen, Western Union
Levering vermogen: 600K/maand
Reeks: |
RJ45 geïntegreerde aansluitmodule |
PoE Steun: |
- Ja, dat klopt. |
Aantal havens: |
1x4 |
HOOGTEprofiel: |
Laag |
Versnelling: |
10/100Base-t |
Lange: |
58.24mm |
Breedte: |
33.02 mm |
Hoogte: |
12.25mm |
Reeks: |
RJ45 geïntegreerde aansluitmodule |
PoE Steun: |
- Ja, dat klopt. |
Aantal havens: |
1x4 |
HOOGTEprofiel: |
Laag |
Versnelling: |
10/100Base-t |
Lange: |
58.24mm |
Breedte: |
33.02 mm |
Hoogte: |
12.25mm |

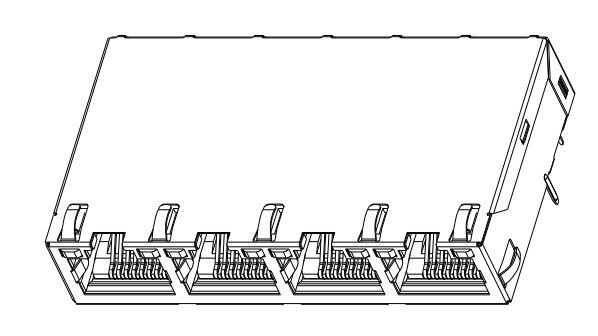

The 1-1840578-9 is a quad-port (1X4) 10/100BASE-T MagJack with Tab Up configuration and low profile design. It features Green/Green LED indicators and supports Power over Ethernet (PoE) with 15W power capability. This model operates in a commercial temperature range of 0°C to +70°C. It includes EMI tabs for improved electromagnetic interference protection, uses a through-hole mounting method, and is RoHS compliant.
| Parameter | Specification |
|---|---|
| Part Number | 1-1840578-9 |
| Series | Integrated RJ45 Connectors |
| Number of Ports | 1x4 (Quad Port) |
| Ethernet Speed | 10/100BASE-T |
| Tab Direction | Up |
| Mounting Type | Through-Hole Mount |
| Mounting Orientation | Right-Angle |
| PoE Support | PoE, up to 15W |
| PoE Current | 350 mA DC Max |
| LED Indicators | Green/Orange (GO/G) |
| Shielding | Shielded with EMI Fingers |
| Operating Temperature | 0°C to +70°C |
| Turns Ratio | TX: 1:1, RX: 1:1 |
| Open Circuit Inductance | 350 µH |
| Dimensions (L x W x H) | 58.24 mm x 33.02 mm x 12.25 mm |
| Compliance | RoHS Compliant |
