Productdetails
Plaats van herkomst: Guangdong, China
Merknaam: LINK-PP
Certificering: UL,RoHS,Reach,ISO
Modelnummer: TS6121A
Betaling & het Verschepen Termijnen
Min. bestelaantal: 400/2000/10K/25K
Prijs: $0.06-$1.2
Verpakking Details: T&R
Levertijd: 1-3 dagen
Betalingscondities: TT, NET30/60/90-Dagen
Levering vermogen: 3KK/Month
Onderdeelnummer: |
STS6121A / TS6121A |
Serie: |
Ethernettransformator |
Magnetics: |
10/100 basis-T |
Draaiverhouding: |
1CT: 1CT |
Grootte / dimensie: |
12,70 mm x 9,40 mm x 6,22 mm |
Datasheet: |
Neem contact met ons op |
Onderdeelnummer: |
STS6121A / TS6121A |
Serie: |
Ethernettransformator |
Magnetics: |
10/100 basis-T |
Draaiverhouding: |
1CT: 1CT |
Grootte / dimensie: |
12,70 mm x 9,40 mm x 6,22 mm |
Datasheet: |
Neem contact met ons op |

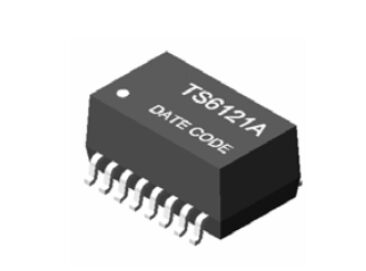

Beschrijving: 10/100 BASE Pulse Transformer, SMD klein formaat pakket (16-pins SMD)
| Parameter | Condities / Frequentie | Waarde |
|---|---|---|
| OCL (µH Min) | 100 kHz, 0.2 V, met 8 mA DC Bias | 350 |
| Turns Ratio | TX = 1CT : 1CT | — |
| Insertion Loss (dB Max) | 0.5–100 MHz | –1.1 |
| Return Loss (dB Min) | 0.5–30 MHz | –18 |
| Return Loss (dB Min) | 30.1–60 MHz | –18 + 20 * log(f/30) |
| Return Loss (dB Min) | 60.1–80 MHz | –12 |
| Cross Talk (dB Min) | 0.5–40 MHz | –35 |
| Cross Talk (dB Min) | 40.1–100 MHz | –33 + 20 * log(f/50) |
| CMRR (dB) | 0.5–100 MHz | –30 |
| HI‑POT (Vrms) | — | 1500 |
| LAN Transformers Onderdeelnummer | |||
|---|---|---|---|
| 16ST8515-1 LF | G4P209RNY LF | 24SH10410 HF | NS0068D LF |
| TS6121A | G4P409N LF | 24SH10416 HF | TS8121A LF |
| TL1142B-A LF | TS6121A | 24SH10416 HF | NS0014Y LF |
| TL8515A LF | G4P409N-A LF | GSL5009 LF | NS0015 LF |
| TL8515C LF | G4P409RNY LF | TS6121A | NS14 LF |
| TN1142B LF | G4PS106N LF | G2P109N-C LF | NS14-1 LF |
| TN1284 LF | TS6121A | G2P109NY LF | NS14Z LF |
| TN8515 LF | G4PS109N LF | G2P129N LF | NS14Z LF |
| TN8515A LF | G4PS109RN LF | G2P129N LF | TS8121A LF |
| TN8515B LF | GH5209 LF | G2PM106N LF | NS14BZ LF |
| TN8515C LF | GH5409 LF | G2PM109N LF | NS14Y LF |
| TS13H HF | GH5609S LF | G2PM109N LF | TS8121A LF |
| TS21AY HF | GH5209-1 LF | G2PM109RNY LF | 14ST9012P LF |
| TS800-06 HF | GH5210 LF | G2PM109N1 LF | VP6019 HF |
| TS21C HF | GH5409-1 LF | G2PM109NH LF | VP6018RZM HF |
| TS8121A HF | GH5409M LF | TS8121A LF | VP6015M LF |
| TS8121AX HF | GH5609S-1 LF | G2PM109NM LF | VP6014RZ HF |
