Productdetails:
Betalen & Verzenden Algemene voorwaarden:
|
| onderdeelnummer: | Xrjv-01v-4-d12-180 | massa productie: | Xrjv-01v-4-d12-180 |
|---|---|---|---|
| Originele Munafactuer: | Verbinding-pp | Ethernet: | 10/100Base-t snel |
| Beëindiging: | Soldeersel | Mouting: | zijingang |
| Hoogtepunt: | Gestapelde RJ45-Schakelaars,multihavenschakelaar |
||
| Xrjv-01v-4-d12-180 | Verticaal zet Rj45-Hefboom op |
Hoogste Ingangsrj45 Schakelaar |
Verticale ingang Rj45 |
Xrjv-01v-4-d12-180 Cross/PDF/datasheet/Price/3D/Cross

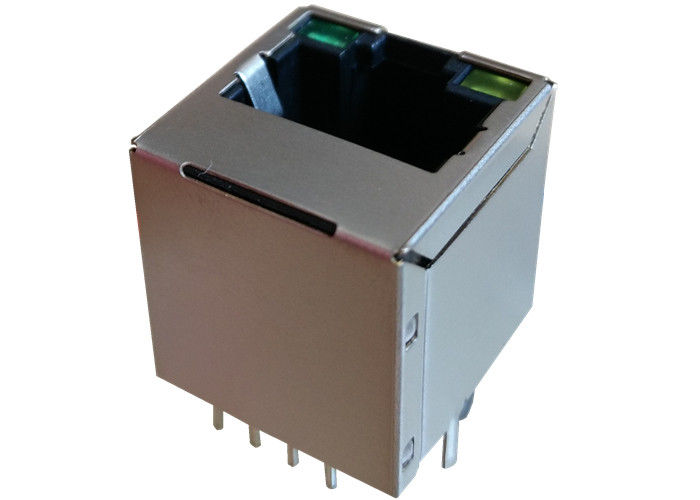

RJ45-de Verticaal zet Beschermde 8P8C op, door-Gat, 10/100Mbps Magnetics, leiden
TESTnota's (25±5℃)
1.TR: (100KHz, 0.1V);
TX=1CT: 1CT ±2% RX=1CT: 1CT ±2%P2.LX: (Bias van 100KHz, van 100mV, van 8mA, gelijkstroom-)
SPELDEN: (R1-R3), (R4-R6) =350UH MIN
3.Transmitter filter & van de Ontvangersfilter Type:
Impedantie van de saldo de lage pas 100Ω
4.HIPOT:
Input (R1-R3) AAN Output (C1-C2): 1500VAC 60sec
Input (R4-R6) AAN Output (C3-C6): 1500VAC 60sec
5.INSERTION VERLIES:
-1.0dB MAXIMUM @ 1.0MHz AAN 100MHz
6.RETURN VERLIES:
-18dB MIN @ 1.0MHz AAN 30MHz
-16dB MIN @ 30MHz AAN 60MHz
-12dB MIN @ 60MHz AAN 80MHz
7.CROSS BESPREKING:
-30dB MIN @1.0MHz AAN 100MHz
8.COMMON WIJZEverwerping:
-30dB MIN @1.0MHz AAN 100MHz
9.OPERATING TEMPERATUUR: 0℃~70℃.
| Xrjv-01v-4-d12-180 beschermde Verticale RJ45 Jack 8P8C 10/100Mbps Magnetics | ||
|---|---|---|
| Xrjv-01v-4-d12-180 | ARJC02-111008B | Xrjv-01v-4-d12-180 |
| Arj11a-masl-QU2 | ARJC07-111071A | Arj11c-MCSAT a-B-XMU2 |
| Xmv-9813-8812-s0l1t1-B | Xmv-9813-8812-s0l1t1-B | Arj11c-MASAA B-a-XLU2 |
| Arj11a-mdsn-MU2 | ARJC02-111006K | Arj11c-MASAB B-a-XMU2 |
| Xrjv-01v-4-d12-380 | Xrjv-01v-4-d12-180 | Arj11c-MASAD a-a-XMU2 |
| Arj11b-masaa-MU2 | ARJC02-111006K | ARJC01-111002AR |
| Xrjv-01v-4-d12-180 | ARJC01-111002AR | Arj11d-masb-B-a-XMU2 |
| Arj11b-masaj-MU2 | ARJC01-111002T | Arj11d-mcsc-LU2 |
| ARV11-3689 | ARJC02-111006K | Arj11d-mdsd-a-B-XLT2 |
| Arj11b-masan-LU2 | Xrjv-01v-4-d12-380 | Xrjv-01v-4-d12-380 |
| Arj11b-masbf-LU2 | Xrjv-01v-4-d12-180 | Arj11d-mdse-a-B-XMU2 |
| Xrjv-01v-4-d12-380 | Xmv-9813-8812-s0l1t1-B | Arj11d-mase-a-B-XMU2 |
| Arj11b-mascb-LT2 | Arjp11a-masa-B-a-EMU2 | Arj11d-mdsg-B-a-XMU2 |
| Arj11b-mbscb-a-B-ELT2 | Xmv-9813-8812-s0l1t1-B | Arj11d-masg-B-a-XMU2 |
| ARJC01-111002AR | Arjp11a-mbsb-a-B-EMU2 | Arj11d-masg-a-XMU2 |
| Arj11b-mesbq-a-B-EMU2 | ARJC02-111006E | ARJC01-111002AR |
| Arj11b-masbq-MU2 | Arjp11b-masa-B-a-EMU2 | Arj11d-mdsh-a-B-XLU2 |
| Xrjv-01v-4-d12-180 | Arjp11b-mbsb-a-B-EMU2 | Arj11d-brij-B-a-XLU2 |
| Arj11b-mfsbq-a-EMU2 | Xrjv-01v-4-d12-380 | Arj11d-mbsj-a-DA-HLT2 |
| Xrjv-01v-4-d12-380 | Arjp11c-masb-ab-a-FMU2 | Arj11d-mbsk-a-DA-HMU2 |
| Xrjv-01v-4-d12-180 | Xrjv-01v-4-d12-380 | Xrjv-01v-4-d12-180 |
Xrjv-01v-4-d12-180 beschermde Verticale RJ45 Jack 8P8C 10/100Mbps Magnetics
