Productdetails
Plaats van herkomst: Guangdong, China
Merknaam: LINK-PP
Certificering: ISO9001,SGS,UL,CE,REACH163
Modelnummer: RJMG1010211A0NR
Betaling & het Verschepen Termijnen
Min. bestelaantal: 50/500/1000/25K
Prijs: $0.09-$1.85
Verpakking Details: 50 PCs in 1 dienblad, 24tray in 1 karton, dat 32*30*31 is, 9 KG (1200pcs) van elk karton
Levertijd: Voorraad
Betalingscondities: TT, NET30/60/90-Dagen
Levering vermogen: 3000000/maand
onderdeelnummer: |
RJMG1010211A0NR |
massa productie: |
LPJXXCNL |
Originele Munafactuer: |
Verbinding-pp |
Toepassing: |
Snelle Ethernet |
Familie: |
POE Voltage Rj45 |
Type: |
Macht over de Module van Ethernet Rj45 Magnetics |
onderdeelnummer: |
RJMG1010211A0NR |
massa productie: |
LPJXXCNL |
Originele Munafactuer: |
Verbinding-pp |
Toepassing: |
Snelle Ethernet |
Familie: |
POE Voltage Rj45 |
Type: |
Macht over de Module van Ethernet Rj45 Magnetics |
| RJMG1010211A0NR | POE RJ45 Schakelaar | 10/100 POE | POE Rj45 Pinout |
ELEKTROspecfications: @25℃
RJMG1010211A0NR Price/PDF/Specifications/Cross.
1.OCL (Bias van 100KHz, van 0.1V, van 8mA gelijkstroom):
350uH min
2.Turns verhouding (±2%):
TX=1CT: 1 RX=1CT: 1
3.Insertion verlies:
1-100MHz: - MAXIMUM 1.0dB
4.Return verlies (dB min):
1-10MHz: - 20 30MHz: - 16
60-80MHz: - 12 80-100MHz: - 10
5.Crosstalk (dB min):
1-10MHz: - 40 32-65MHz: - 35
65-100MHz: - 30
6.CMR (dB min):
1-125MHz: - 30 125-500MHz: - 20
7.Hipot: 1500Vrms
8.Operating temperatuurwaaier: 0℃ AAN 70℃/-40℃ aan 85℃
• Ontworpen voor de meeste belangrijke fabrikanten van PHY IC zoals Broadcom, Marvell, Microsemi.Cypress
• Steunen 10/100 basis-Tapplications
• Verstrekt signaal het conditioneren, EMI afschaffing en signaalisolatie.
| Rj45 Macht over Ethernet RJMG1010211A0NR Rj Mag 10/100 Enige Haven met Leds | ||
|---|---|---|
| RJMG1010211A0NR | ARJC02-111008B | POE RJ45 Schakelaar |
| Arj11a-masl-QU2 | Arj11b-masai-MU2 | Arj11c-MCSAT a-B-XMU2 |
| Arj11a-masm-RT2 | ARJC07-111071A | RJMG1010211A0NR |
| RJMG1010211A0NR | RJMG1010200A0NR | Arj11c-MASAB B-a-XMU2 |
| Arj11b-masai-MU2 | Arj11c-mbsas-a-bedelaar-7MU2 | Arj11c-MASAD a-a-XMU2 |
| RJMG163117101NR | Arj11b-masam-MU2 | RJMG163117101NR |
| RJMG1010211A0NR | RJMG163117101NR | Arj11d-masb-B-a-XMU2 |
| Arj11b-masaj-MU2 | Arj11b-masaa-MU2 | Arj11d-mcsc-LU2 |
| Arj11b-masam-MU2 | Arj11b-masai-MU2 | Arj11d-mdsd-a-B-XLT2 |
| Arj11b-masan-LU2 | ARJC02-111008B | Arj11c-mbsas-a-bedelaar-7MU2 |
| Arj11b-masaj-MU2 | Arj11b-masaa-MU2 | RJMG163117101NR |
| RJMG1010211A0NR | RJMG1010200A0NR | RJMG1010211A0NR |
| RJMG163117101NR | Arjp11a-masa-B-a-EMU2 | RJMG163117101NR |
| Arj11b-mbscb-a-B-ELT2 | Arjp11a-masa-B-a-FMU2 | Arj11d-masg-B-a-XMU2 |
| RJMG163117101NR | RJMG1010211A0NR | RJMG1010200A0NR |
| Arj11b-mesbq-a-B-EMU2 | Arj11c-mbsas-a-bedelaar-7MU2 | Arj11b-masaj-MU2 |
| RJMG163117101NR | Arjp11b-masa-B-a-EMU2 | Arj11d-mdsh-a-B-XLU2 |
| Arj11b-mbsbq-a-B-EMU2 | RJMG1010211A0NR | Arj11b-masam-MU2 |
| RJMG1010200A0NR | RJMG1010200A0NR | Arj11d-mbsj-a-DA-HLT2 |
| RJMG163117101NR | Arjp11c-masb-ab-a-FMU2 | RJMG1010211A0NR |
| Arj11b-masbr-QU2 | Arj11b-masaj-MU2 | Arj11d-mbsl-a-DA-HLU2 |

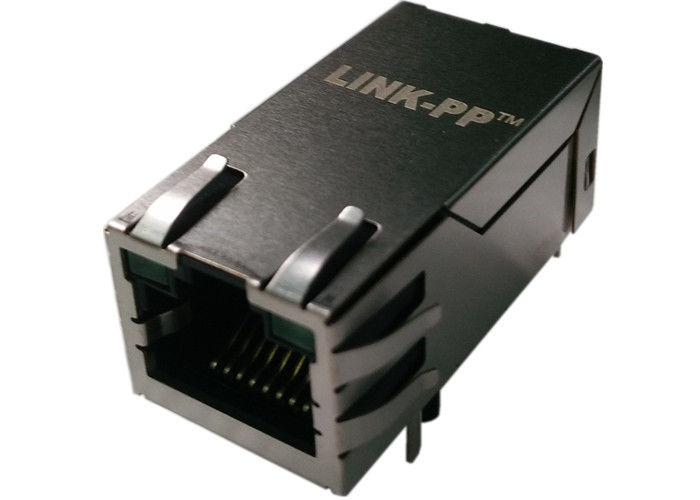

Rj45 Macht over Ethernet RJMG1010211A0NR Rj Mag 10/100 Enige Haven met Leds
Rj45 Macht over Ethernet RJMG1010211A0NR
