Productdetails
Place of Origin: Guangdong,China
Merknaam: LINK-PP
Certificering: UL,RoHS,Reach,ISO
Modelnummer: HXB6607NL
Betaling & het Verschepen Termijnen
Minimum Order Quantity: 400/2000/10K/25K
Prijs: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Number Of Pins: |
96-pin |
Number Of Ports: |
4-Port |
Isolation Voltage: |
1500 Vrms |
Wave Solder: |
260°C/5s |
Data Rate: |
1000BASE-T |
Product Module: |
HXB6607NL |
Free Samples: |
Support |
RoHS: |
Fully RoHS compliant |
Number Of Pins: |
96-pin |
Number Of Ports: |
4-Port |
Isolation Voltage: |
1500 Vrms |
Wave Solder: |
260°C/5s |
Data Rate: |
1000BASE-T |
Product Module: |
HXB6607NL |
Free Samples: |
Support |
RoHS: |
Fully RoHS compliant |
| Parameter | Specification |
|---|---|
| Part Number | HXB6607NL |
| Turns Ratio | 1CT : 1CT |
| OCL @100KHz, 100mV | 260 µH MIN with 8mA DC bias |
| Insertion Loss | 1–100 MHz: -1.0 dB MAX |
| Return Loss | 1–40 MHz: -16 dB MIN40–100 MHz: –(10 – 20·log₁₀(f/80)) dB MIN |
| Isolation (Pri : Sec) | 1500 Vrms |
| PoE Support | 4-Pair PoE+ (IEEE 802.3at), up to 60W |
| PoE Current | 600 mA per pair |
| No. of Channels/Ports | Quad (4-port) |
| Data Rate | 1000BASE-T Gigabit Ethernet |

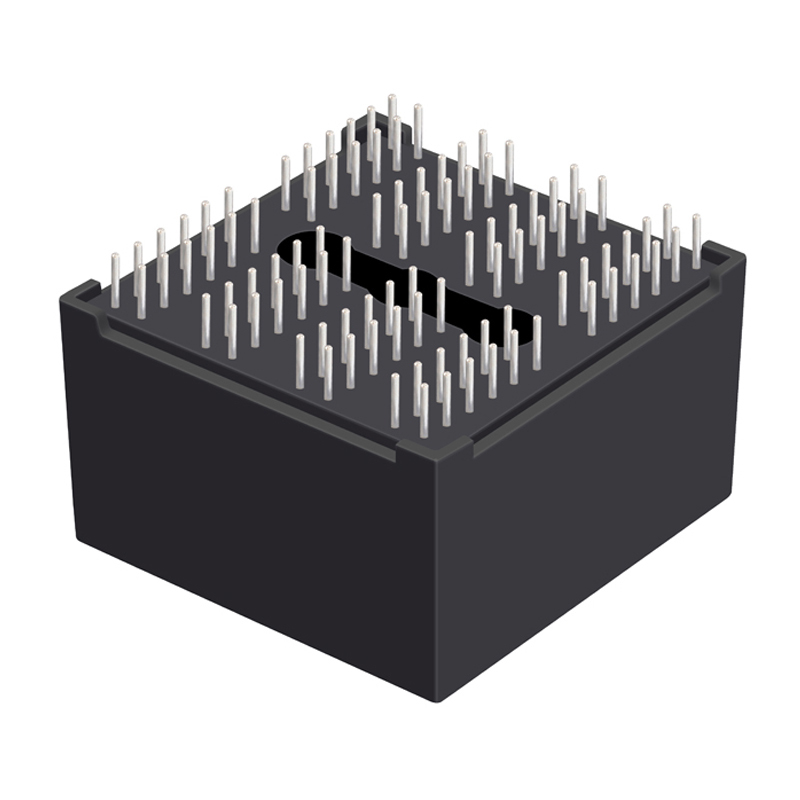

| Mounting Style | Through-hole technology (THT), 96-pin package |
| Operating Temperature | -40°C to +85°C |
| Environmental | RoHS compliant |
| Applications | Industrial Ethernet, PoE+ switches, IP cameras, telecom systems, rugged devices |
Product Packaging and Shipping for PoE LAN Transformer:
The PoE LAN Transformer will be carefully packaged in a sturdy cardboard box to ensure its safety during transit. The product will be wrapped in bubble wrap to prevent any damage during shipping.
Shipping will be handled by our trusted courier service which provides fast and reliable delivery. Once the order is processed, you will receive a tracking number to monitor the status of your shipment.
Q: What is the place of origin of the PoE LAN Transformer product?
A: The PoE LAN Transformer product is manufactured in Guangdong, China.
Q: What is the brand name of the PoE LAN Transformer?
A: The brand name of the PoE LAN Transformer is LINK-PP.
Q: What certifications does the PoE LAN Transformer have?
A: The PoE LAN Transformer is certified by UL, RoHS, Reach, and ISO.
Q: What are the available model numbers for the PoE LAN Transformer?
A: The available model numbers for the PoE LAN Transformer are H2019NLT and HX2019NLT.
Q: What is the minimum order quantity for the PoE LAN Transformer?
A: The minimum order quantities for the PoE LAN Transformer are 400, 2000, 10,000, and 25,000 units.
