Productdetails:
Betalen & Verzenden Algemene voorwaarden:
|
| PN: | J8064E62NL | Made in China: | Smj-LPJF26204CNL |
|---|---|---|---|
| Toepassing: | 10/100BT PHT | Ethernet: | Snelle Dubbele Ethernet |
| Poort: | 1,2,4 flexibel | HiPot: | 1500v |
| Hoogtepunt: | multihavenschakelaar,modulaire hefbomen rj45 |
||
|

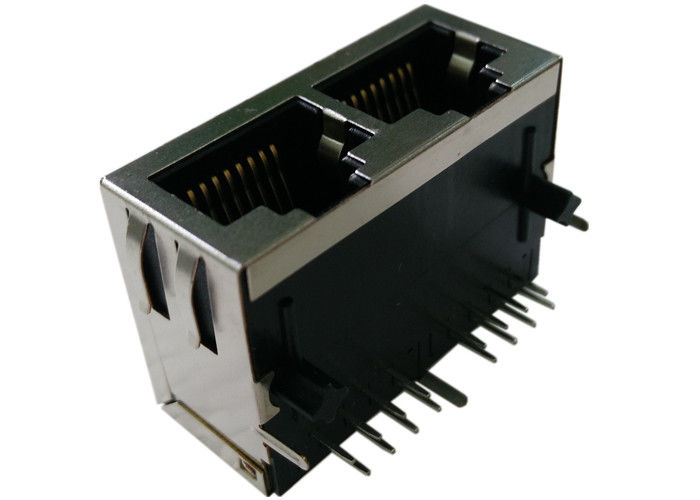

Impulshefboom J8064E62NL |
||||||||||||||||||||||||||||||||
|
Handelaarartikelnummer |
J8064E62NL Pulsejack |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Gemaakt in China |
Smj-LPJF26204CNL |
|||||||||||||||||||||||||||||||
|
Fabrikant |
Verbinding-pp China |
|||||||||||||||||||||||||||||||
|
Beschrijving |
10/100 Modulaire Hefboom Rj45 Wo/LED |
|||||||||||||||||||||||||||||||
|
Loodvrije Status/RoHS-Status |
Volgzame loodvrij/RoHS |
|||||||||||||||||||||||||||||||
|
Beschikbare hoeveelheid |
2.000 PCs of 4 weken |
|||||||||||||||||||||||||||||||
De Elektrospecificaties @25℃ van J8064E62NL Rj45
Elektrospecificaties: @25℃
1.Turns verhouding (±2%):
TX=1CT: 1CT RX=1CT: 1CT
2.Return verlies (dB Min):
1-10MHz: - 18 30MHz: - 16
60-100MHz: - 12
3.Crosstalk:
1-100MHz: - 30dB Min
4.Insertion verlies:
1-100MHz: - maximum 1.2dB
5.CMR:
1-50MHz: - 30dB Min
50-130MHz: - 20dB Min
7.Isolation voltage: 1500V
8.Operating temperatuur: 0-70℃
