Productdetails
Plaats van herkomst: China
Merknaam: LINK-PP
Certificering: SGS, UL,CE,ISO9001

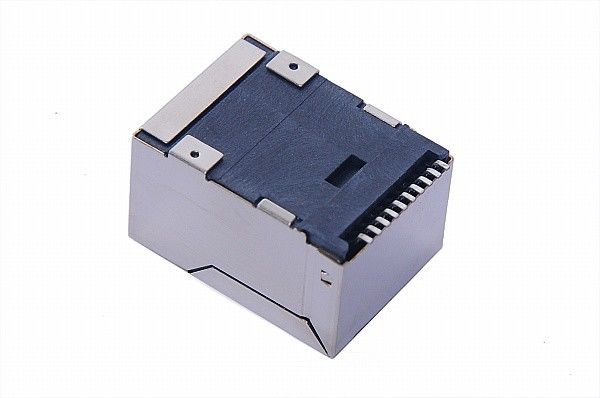

Modelnummer: LPJG19801DNL
Betaling & het Verschepen Termijnen
Min. bestelaantal: 900pcs
Prijs: Supportive&Discount
Verpakking Details: 150PCS/Reel, 6Reels/Carton, 900PCS/Carton=35.5*35.5*35cm, Weight10KG
Levertijd: Voorraad
Betalingscondities: TT, NET30/60/90-Dagen
Levering vermogen: 3000K/month
Specificatie: |
LPJG19801DNL |
Deel no: |
LPJG19801DNL |
Mouting: |
SMT |
Ethernet: |
10/100/1000Mbps |
Indicator: |
LED flexibele |
monsters: |
Beschikbaar |
Specificatie: |
LPJG19801DNL |
Deel no: |
LPJG19801DNL |
Mouting: |
SMT |
Ethernet: |
10/100/1000Mbps |
Indicator: |
LED flexibele |
monsters: |
Beschikbaar |
Elektrospecificaties @ 25℃ 1.Turns verhouding (%%P 2%): TX=1CT: 1CT RX=1CT: 1CT 2.INDUCTANCE (BIAS van @100KHz, van 100mV, van 8mA gelijkstroom): J1-J2; J3-J6; J4-J5; J7-J8: 350uH min 3.Insertion verlies: 1~100MHz: - maximum 1.0dB 4.Return verlies (dB Min.load 100Ω): 1~30MHz: - 18 30~60MHz: - 16 60~80MHz: - 12 80~100MHz: - 10 5.Crosstalk (dB Min): 1~30MHz: - 40 30~60MHz: - 35 60~100MHz: - 30 6.Common wijzeverwerping (dB Min): 1~50MHz: - 40 50~150MHz: - 30 7.Isolation voltage: 1500Vrms 8.Operating temperatuurwaaier: -40℃~+85℃. |
|
