Productdetails
Plaats van herkomst: China
Merknaam: LINK-PP
Certificering: UL,RoHS,Reach,ISO
Modelnummer: L15N001-0
Betaling & het Verschepen Termijnen
Min. bestelaantal: 400/2000/10K/25K
Prijs: $0.06-$3.2
Verpakking Details: T&R
Levertijd: Voorraad
Betalingscondities: TT, NET30/60/90-Dagen
Levering vermogen: 3KK/Month
P/N: |
L15N001-0 |
Ethernet: |
4 haven 10/100Mbps |
Montage: |
DUIK |
pin: |
48 |
Toepassing: |
NAS/STB/Draadloze producten |
Dwarsrf: |
L15N001-0 => LPXXXNL |
monsters: |
Beschikbaar |
Dossiers: |
PDF/informatieblad/3D/IGS/Stap /Stp |
P/N: |
L15N001-0 |
Ethernet: |
4 haven 10/100Mbps |
Montage: |
DUIK |
pin: |
48 |
Toepassing: |
NAS/STB/Draadloze producten |
Dwarsrf: |
L15N001-0 => LPXXXNL |
monsters: |
Beschikbaar |
Dossiers: |
PDF/informatieblad/3D/IGS/Stap /Stp |

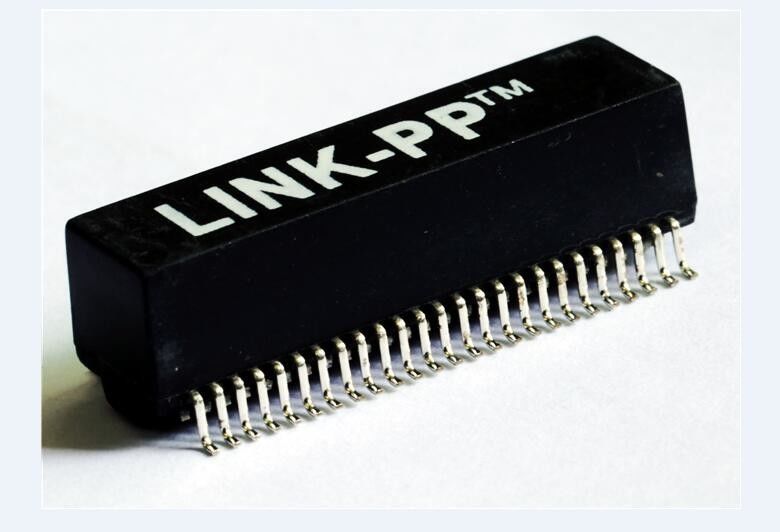

1.4 havenslan Filter L15N001-0
2.10/100 basis – de Modules van T Magnetics
3.Pin aan speld compatibel door LINK-PP LPXXXNL
Toepassing
draadloze Medische de productenepon/GPON/IP Camera NAS/STB/van XDSL
Draaiverhouding (±2%):
|
TX=1CT: 1CT RX=1CT: CT
|
Inductantie OCL
|
350uH MIN/@ 100KHz, 0.1V, Bias van 8mA gelijkstroom
|
Toevoegingsverlies
|
-1.0dB MAXIMUM @ 1-65MHz
|
Terugkeerverlies
|
-20dB MIN @ 1-10MHz
|
-16dB MIN @ 10-30MHz
|
|
-12dB MIN @ 30-60MHz
|
|
-10dB MIN @ 60-100MHz
|
|
Dwarsbespreking
|
-40dB MIN @ 1-30MHz
|
-35dB MIN @ 30-60MHz
|
|
-30dB MIN @ 60-100MHz
|
|
Gemeenschappelijke Wijzeverwerping
|
-30dB MIN @ 1-50MHz
|
-20dB MIN @ 50-150MHz
|
|
Hipottest
|
1500Vrms min
|
Werkende Temperatuurwaaier
|
0℃ AAN 70℃. /-40℃ AAN 85℃.
|
Professionele Certificatie
•ISO-9001:2008
•UL certificatie
•Bereik Cetitifaction
•RoHSnaleving
•Actief Milieubeleid
