Productdetails
Plaats van herkomst: Guangdong, China
Merknaam: LINK-PP
Certificering: UL,RoHS,Reach,ISO

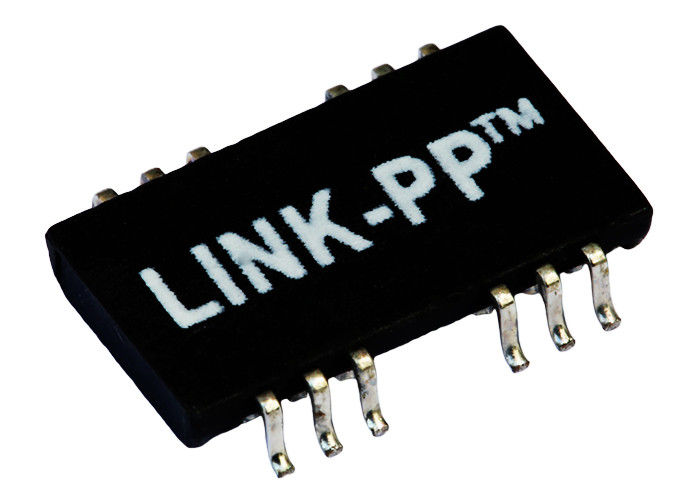

Modelnummer: NS0013B LF
Betaling & het Verschepen Termijnen
Min. bestelaantal: 400/2000/10K/25K
Prijs: $0.06-$3.2
Verpakking Details: T&R
Levertijd: Voorraad
Betalingscondities: TT, NET30/60/90-Dagen
Levering vermogen: 3KK/Month
PN: |
NS0013B LF |
Bothhand: |
NS0013B LF |
Made in China: |
VERBINDING-PP LP41604ANL |
Toepassingen: |
100/1000 basis-T |
Familie: |
LAN Transformator Power+ |
Montage: |
SMT |
Archividisponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
PN: |
NS0013B LF |
Bothhand: |
NS0013B LF |
Made in China: |
VERBINDING-PP LP41604ANL |
Toepassingen: |
100/1000 basis-T |
Familie: |
LAN Transformator Power+ |
Montage: |
SMT |
Archividisponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
NS0013B LF = LP41604ANL | ||||||||||||||||||||||||||||||||
| Handelaarartikelnummer | NS0013B LF Bothhand |
| ||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fabrikant | Verbinding-pp | |||||||||||||||||||||||||||||||
| Gemaakt in China | LP41604ANL #link-pp | |||||||||||||||||||||||||||||||
| Documenten | PDF/IGS/STEP/Cross/Price/Compatible | |||||||||||||||||||||||||||||||
| Beschrijving | De Macht van Gigabitmagnetics over Ethernet+ | |||||||||||||||||||||||||||||||
| Loodvrije Status/RoHS-Status | Volgzame loodvrij/RoHS | |||||||||||||||||||||||||||||||
| Beschikbare hoeveelheid | 2.000 PCs/of 5 weken | |||||||||||||||||||||||||||||||
Verbinding-pp Gemaakt in China, de Lijst van de Fabrieksmassaproduktie:
| NS0013B LF | 74990112121 | 13F-64YGD2PLNW2NL | HFJ11-1G02E-L12V3RL |
| 99751813-01 | 74990112121 | XFATM2GA-CLGY1-2MS | XFATM6CB-CLYG1-4MS |
| JX0011D21BNL | J00-0045NL | Mtj-88tx1-fsz-pg-d1lh-M7 | MIC24013-5104T-LF3 |
| RJLD260TC1 | LP41604ANL | HFJ11-E2450E-L12RL | NS0013B LF |
| Rjld-260TC1 | J1B1211CFD | XFATM2E-Clxu1-4MS | HFJ11-1G02E-L12V3RL |
| NS0013B LF | 6605814-2 | MIC24013-5104T-LF3 | LP41604ANL |
| JXR0-0015NL | Rjlbc-060TC1 | HFJ11-1G02E-L12V3RL | XFO656P-CLxu1-4MS |
| 13F-64HND2NL | HY911105AE | NS0013B LF | 24F-2011EGYD2SNWXNL |
| Hfj11-e2450e-RL | LP41604ANL | HFJ11-E2450E-L11RL | NS0013B LF |
| Sjtab-40lb02-l | Rjlb-001TC1 | 13F-64GYDPNS2NL | XFAMT6SA-CLGY1-4MS |
| TG111-HPE3NZRL | NS0013B LF | HFJ11-1G02E-L12V3RL | 24G-66JGYDPLZ2NL |
| 74990112121 | 74990112121 | TG111-HPE3NZRL | HFJ11-1G02E-L12V3RL |
NS0013B LF ELEKTROspecfications: @25℃
1.Turn verhouding (3%):
TX=1CT: 1CT RX=1CT: 1CT
2.Inductance OCL:
350uH MIN @ 100KHz 0.1V
3.Insertion verlies:
-1.1dB MAXIMUM @ 1-100MHz
4.Return verlies:
-16dB MIN @ 1-30MHz
-12dB MIN @ 30-60MHz
-10dB MIN @ 60-100MHz
5.Cross bespreking:
-40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
6.Common wijzeverwerping:
-30dB MIN @ 1-50MHz
-20dB MIN @ 50-150MHz
7.Hipot test: 1500Vrms
8.Operating temperatuurwaaier: -40℃ AAN +85℃.
A.Designed om toepassing, zoals SOHO (ADSL-modems) te steunen,
LAN-op-Motherboard (LOM), hub en Schakelaars.
B.Meets de specificatie van IEEE 802,3.
C.Maximum is de terugvloeiingstemperatuur 260℃, 10s, 3 keer.
