Productdetails
Plaats van herkomst: Guangdong, China
Merknaam: LINK-PP
Certificering: UL,RoHS,Reach,ISO

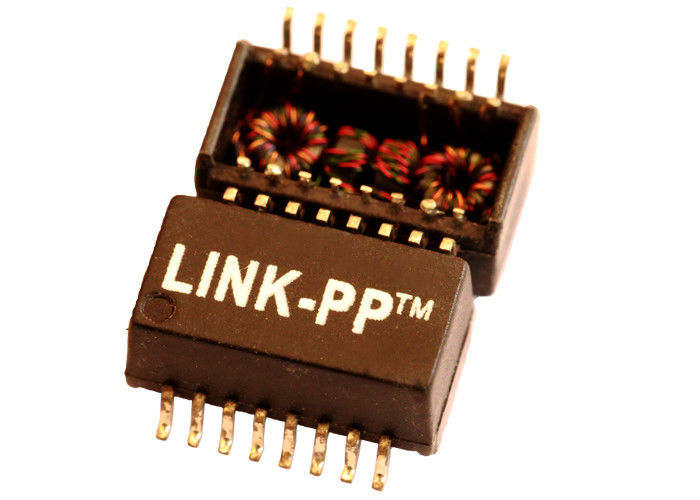

Modelnummer: LP1193NL
Betaling & het Verschepen Termijnen
Min. bestelaantal: 400/2000/10K/25K
Prijs: $0.06-$3.2
Verpakking Details: T&R
Levertijd: Voorraad
Betalingscondities: TT, NET30/60/90-Dagen
Levering vermogen: 3KK/Month
Specificaties: |
LP1193NL |
P/N: |
LP1193NL |
MAATREGEL: |
12.8x9.45x5.45mm |
Montage: |
smd |
Ethernet: |
1x10/100Base-Tx |
monsters: |
gratis |
Archividisponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specificaties: |
LP1193NL |
P/N: |
LP1193NL |
MAATREGEL: |
12.8x9.45x5.45mm |
Montage: |
smd |
Ethernet: |
1x10/100Base-Tx |
monsters: |
gratis |
Archividisponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Elektrospecificatie @25℃
1.Inductance (100KHz, 100mV, 8mADC):
350uH min, 16-14; 11-9, Lp, 0℃ aan 70℃
2.Turns verhouding (±2%):
(1-3): (16:14) =1:1; (6-8): (11-9) =1:1
3.Insertion verlies:
1-100MHz: - maximum 1.0dB
4.Return verlies (dB Min):
1-30MHz: - 20,5 30-60MHz: - 17
60-80MHz: - 14 80-100MHz: - 12
5.Crosstalk:
1-100MHz: - 40dB Min
6.CMRR (dB Min):
1-100MHz: - 40 100-500MHz: - 20,5
7.Isolation voltage: 1500Vrms
8.Operating temperatuurwaaier: 0~70℃ of -40~+85℃
